Cruise Control Component Views
WARNING:
This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

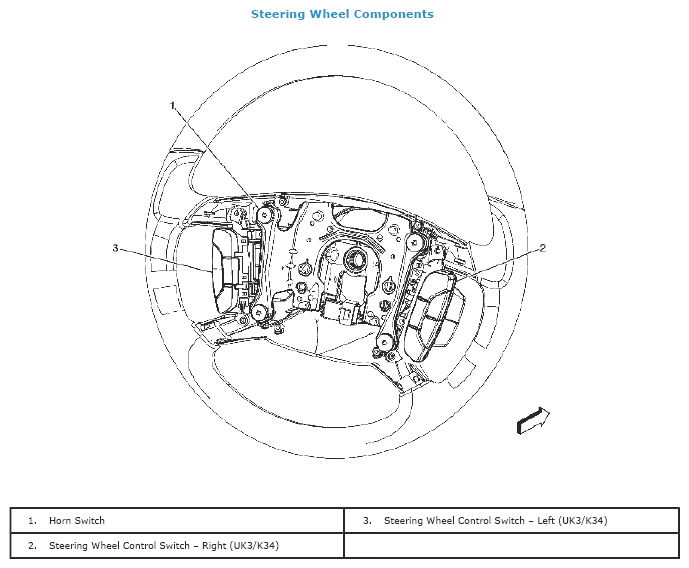

Fig 1: Identifying Steering Wheel Components
Courtesy of SUZUKI OF AMERICA CORP.

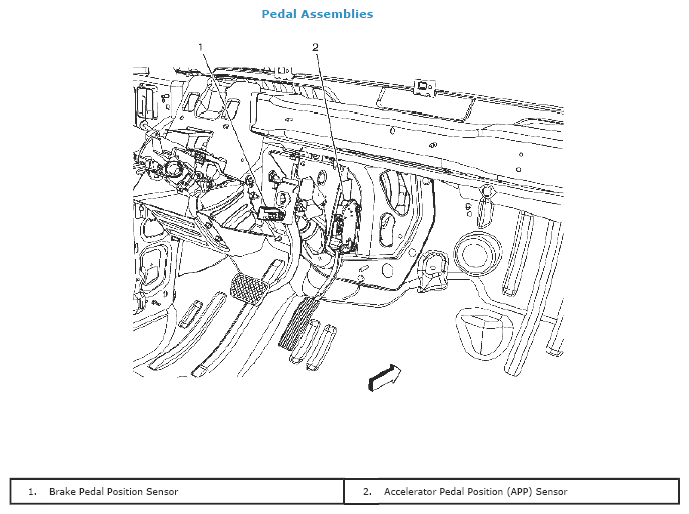

Fig 2: Identifying Brake Pedal & Accelerator Pedal Position (APP) Sensor
Courtesy of SUZUKI OF AMERICA CORP.
