Front Seat Belt: Exploded View

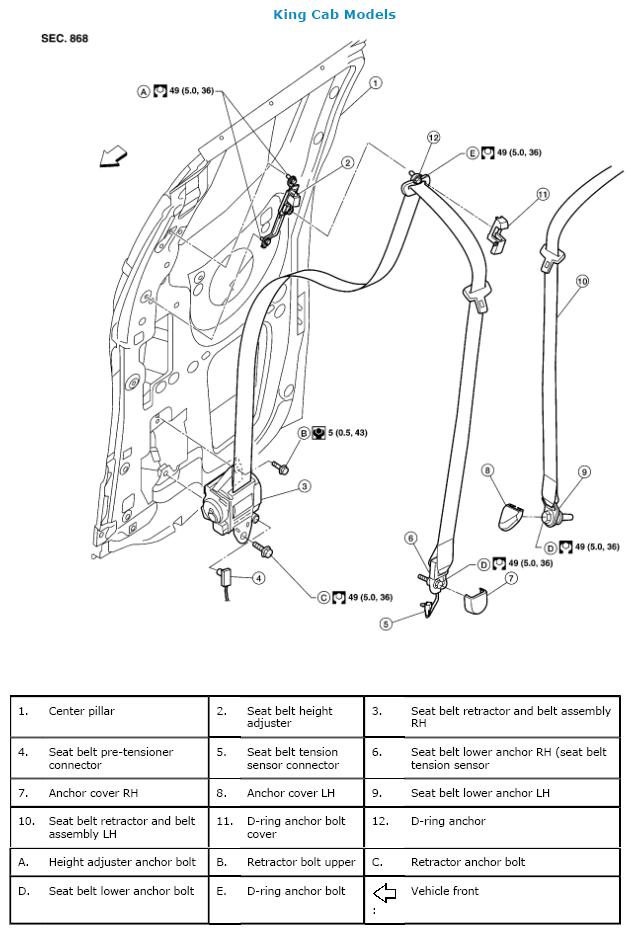

Fig 1: Exploded View Of Front Seat Belt (King Cab Models)
Courtesy of SUZUKI OF AMERICA CORP.

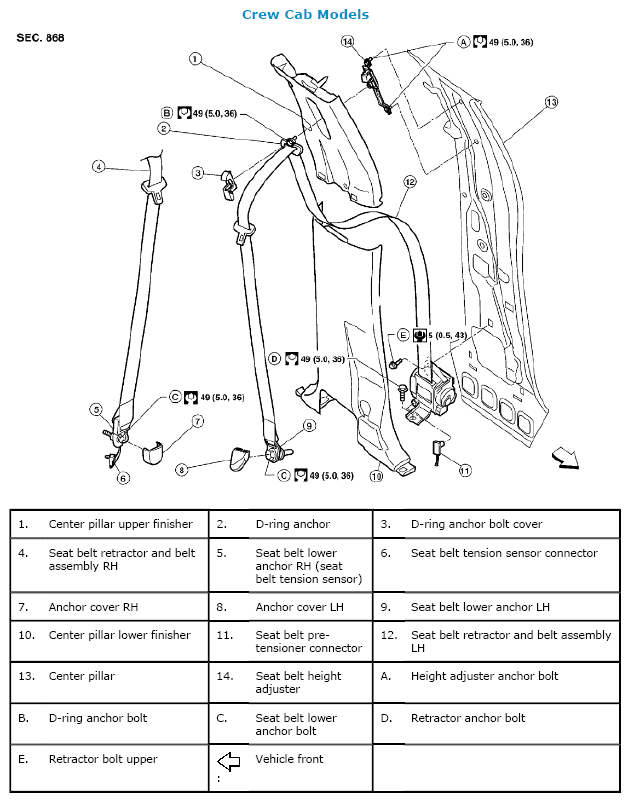

Fig 2: Exploded View Of Front Seat Belt (Crew Cab Models)
Courtesy of SUZUKI OF AMERICA CORP.
