TPMS: System Component

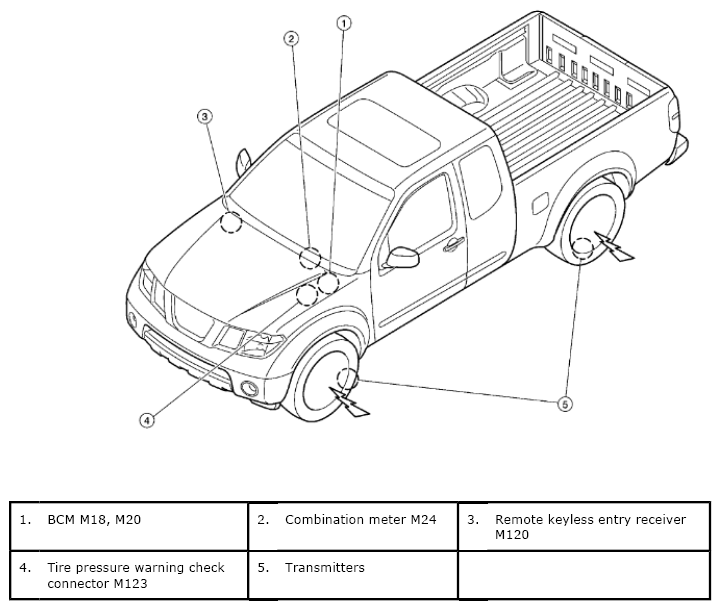

Fig 1: Identifying TPMS System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
