Clutch Master Cylinder: Exploded View

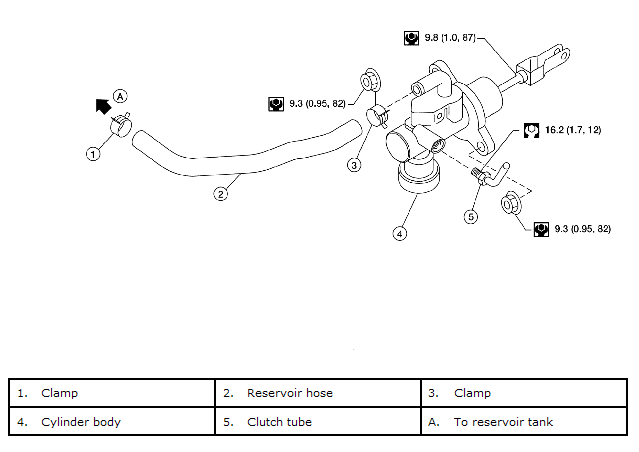

Fig 1: Exploded View Of Clutch Master Cylinder With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
