HVAC Control Module Removal and Installation




HVAC Control Module Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove center garnish with audio unit (if equipped) and HVAC control module referring to Service and Repair Audio Unit Removal and Installation.

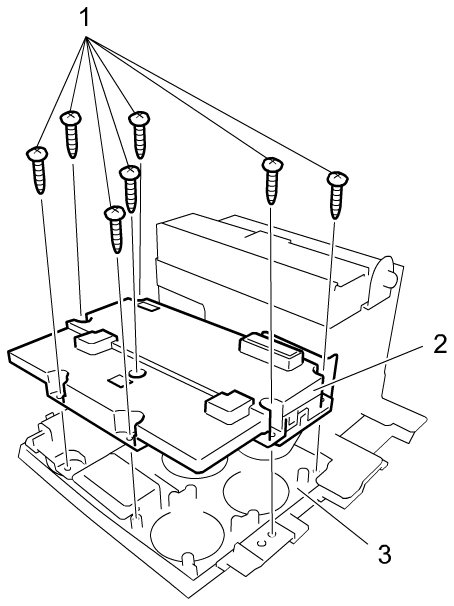

3) Remove HVAC control module mounting screws (1) and then, remove HVAC control module (2) from center garnish (3).






Installation

Reverse removal procedure.
