ECT (Engine Coolant Temperature) Sensor Inspection




ECT (Engine Coolant Temperature) Sensor Inspection

ECT (Engine Coolant Temperature) Sensor Removal and Installation

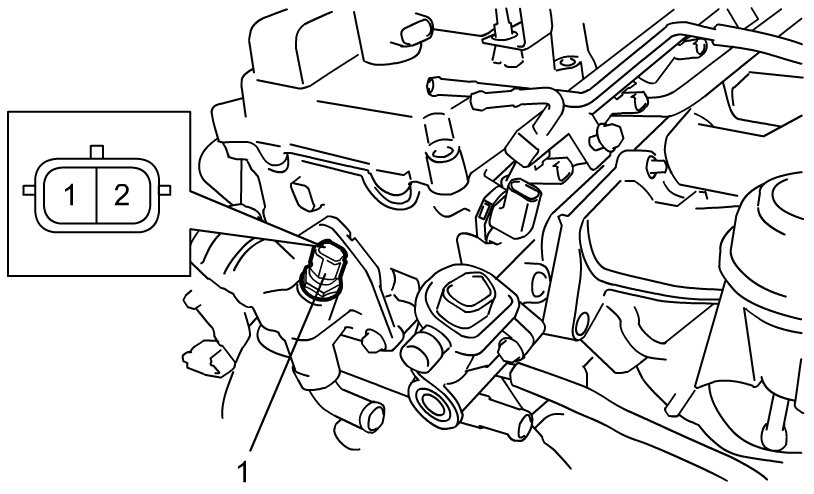

Check that resistance between terminals "1" and "2" varies depending on engine coolant temperature.

If faulty condition is found, replace ECT sensor (1).
