Description of Keyless Start System Alarm Function




Description of Keyless Start System Alarm Function

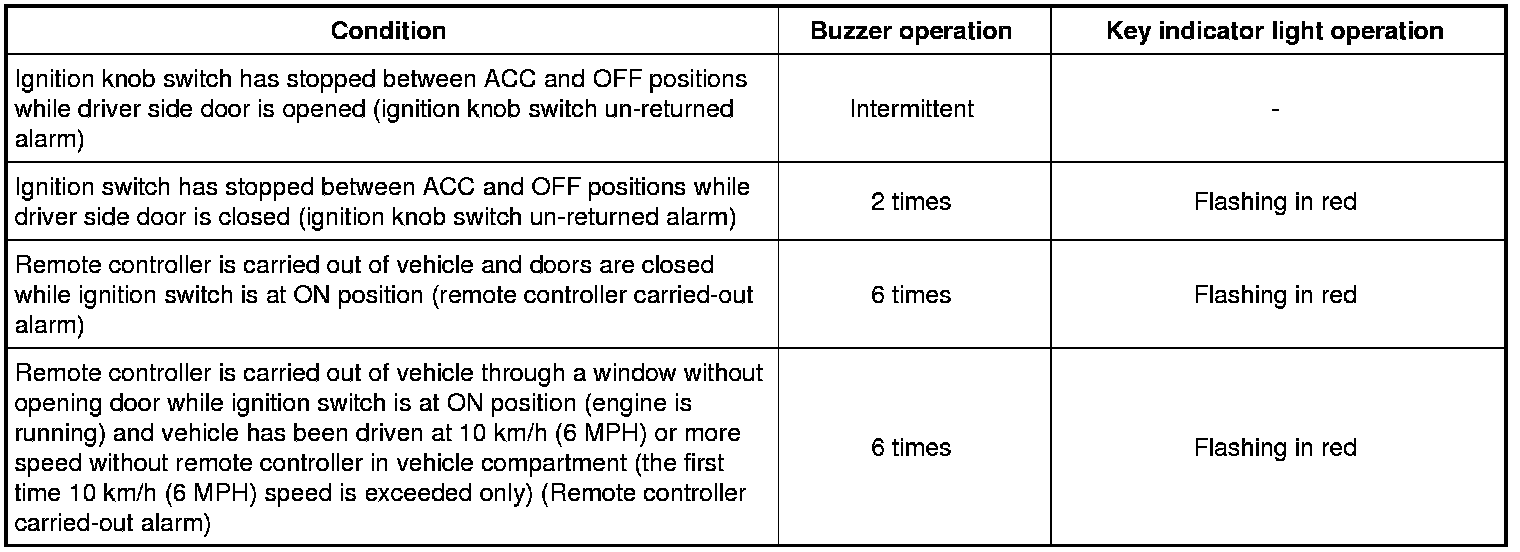

Under conditions as described in the table below, the keyless start control module makes the key indicator light flash in red and the buzzer sound to call the driver's attention.
