Keyless Start Control Module
>>
Locations
>>
Instrument Panel
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Instrument Panel
Instrument Panel
B: A/C Wire / F: Console Wire / G: Instrument Panel Harness / Q: A/B Wire

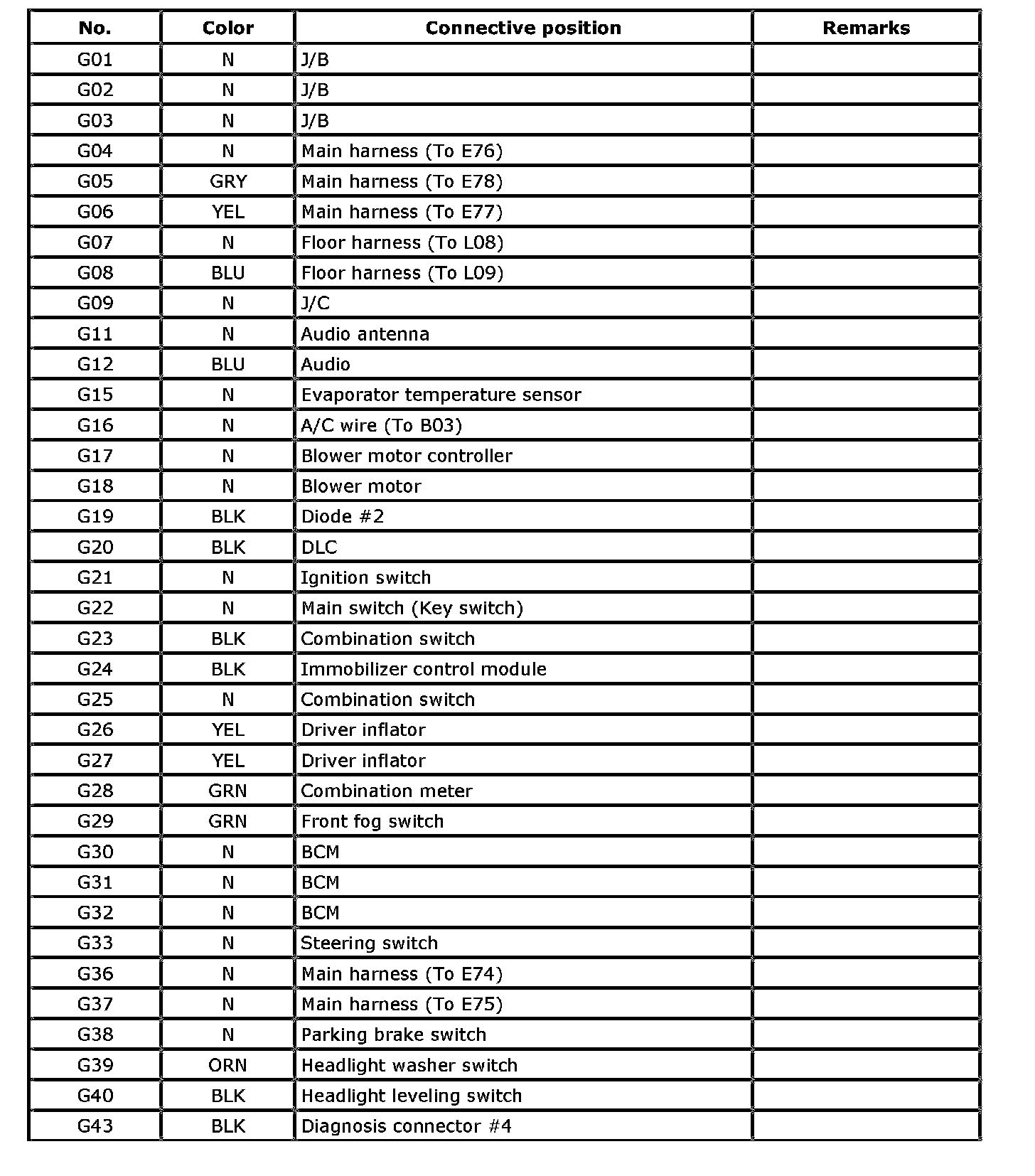

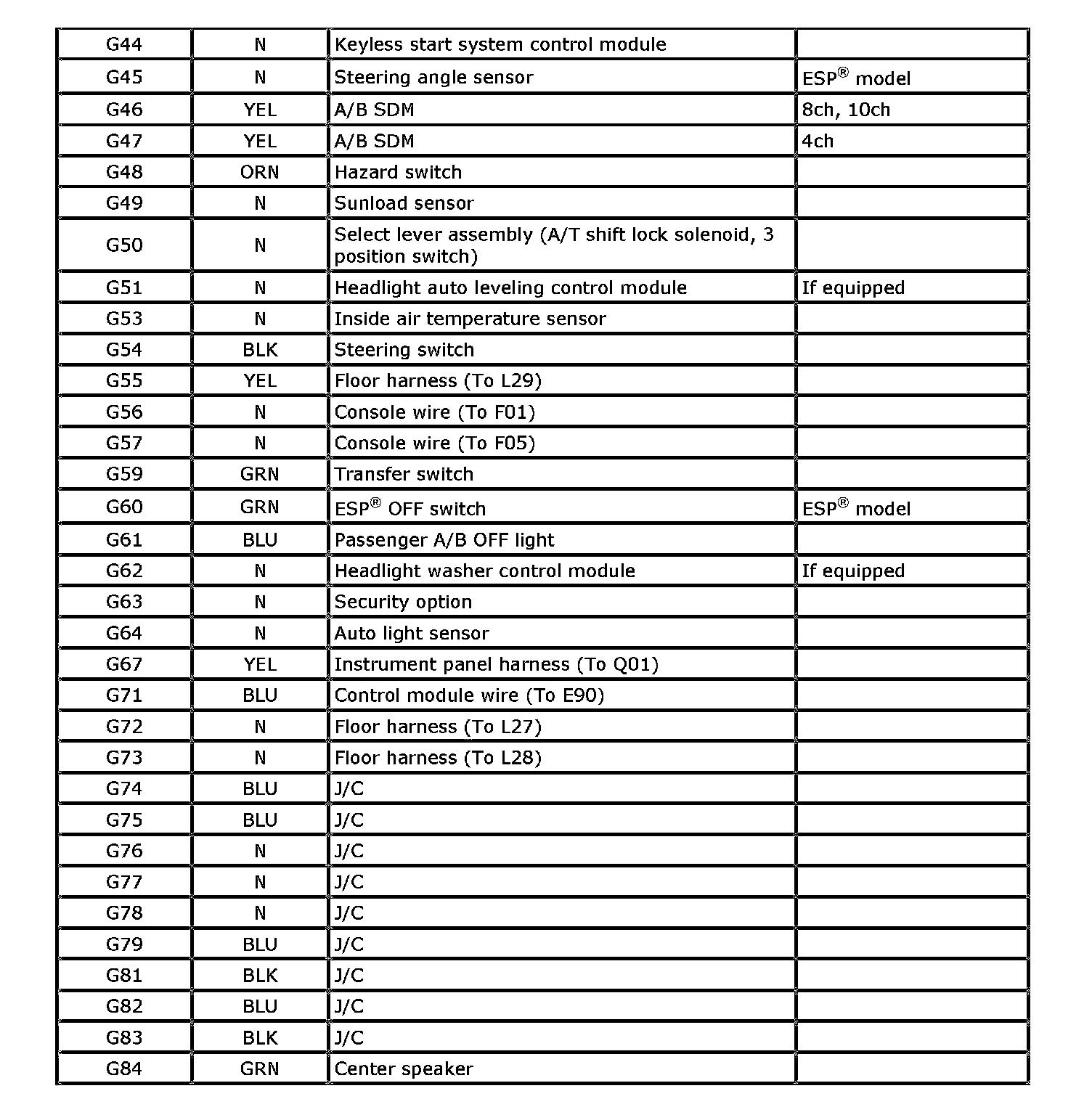

G: Instrument Panel Harness
