Circuit Diagram

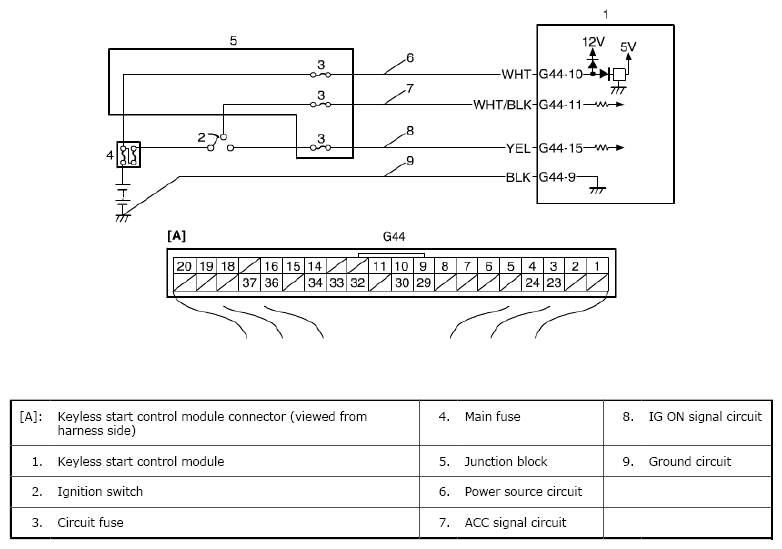

Fig 1: Keyless Start Control Module Power And Ground Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
