Power Mirror Switch: Testing and Inspection

Power Door Mirror Switch Inspection

1) Remove power door mirror switch. Front Door Components

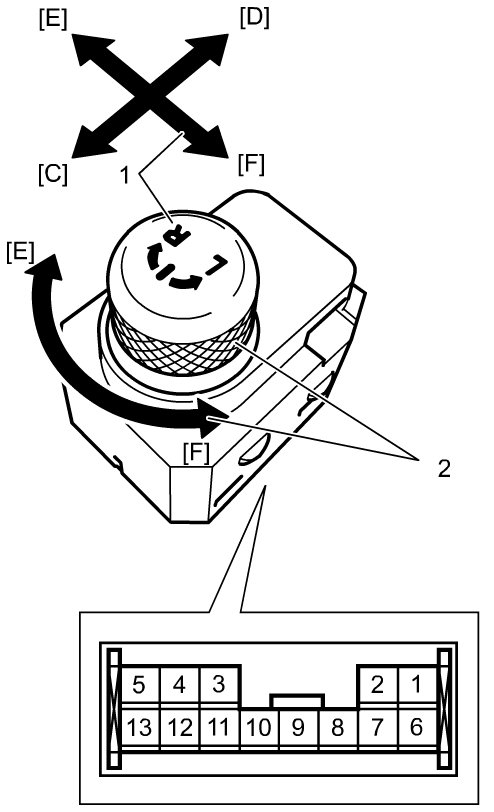

2) Check continuity between terminals at each switch position.

If check result is not as specified, replace switch.

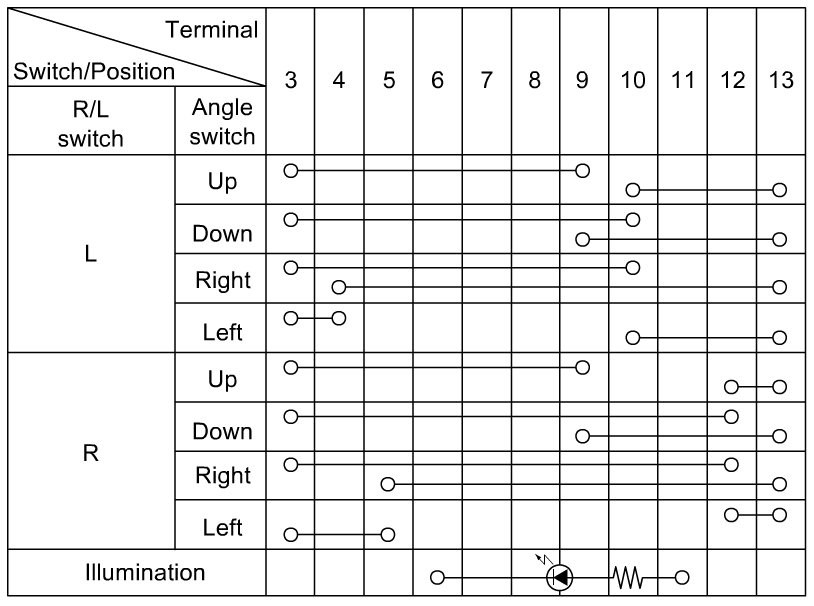

Mirror switch continuity
