Body Electrical Control System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

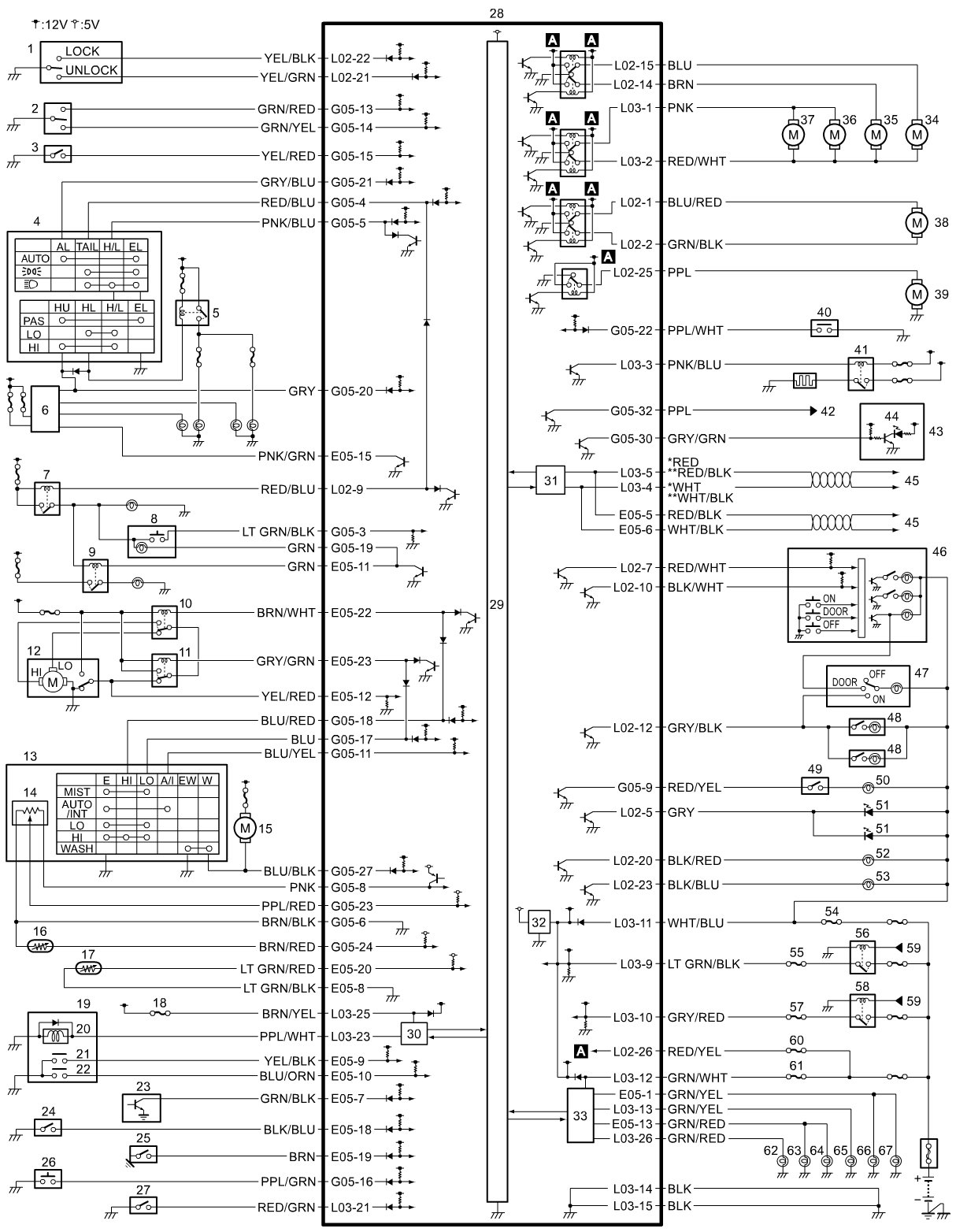

Body Electrical Control System Circuit Diagram

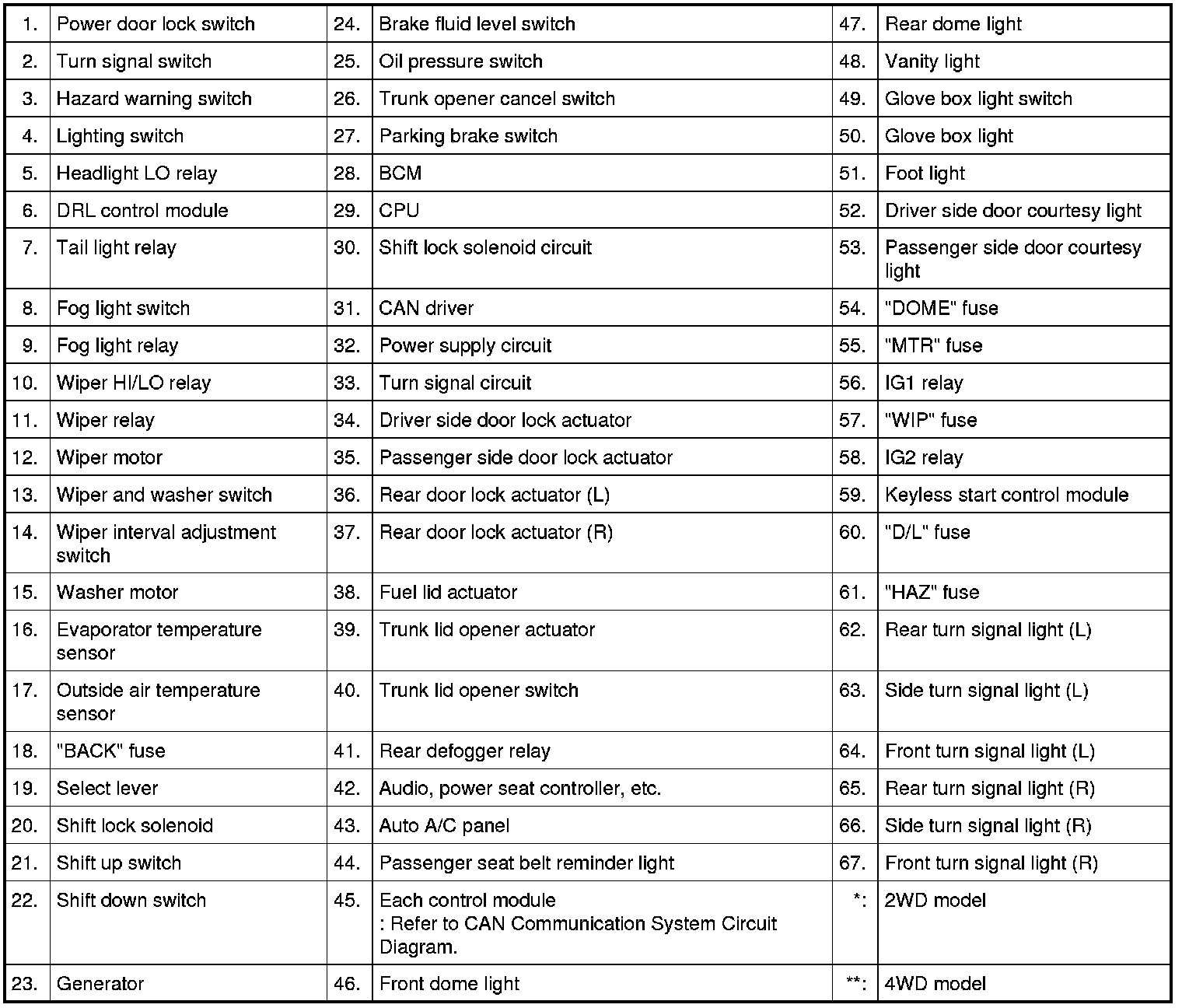

Body Electrical Control System Circuit Diagram
