B-8 Keyless Start System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

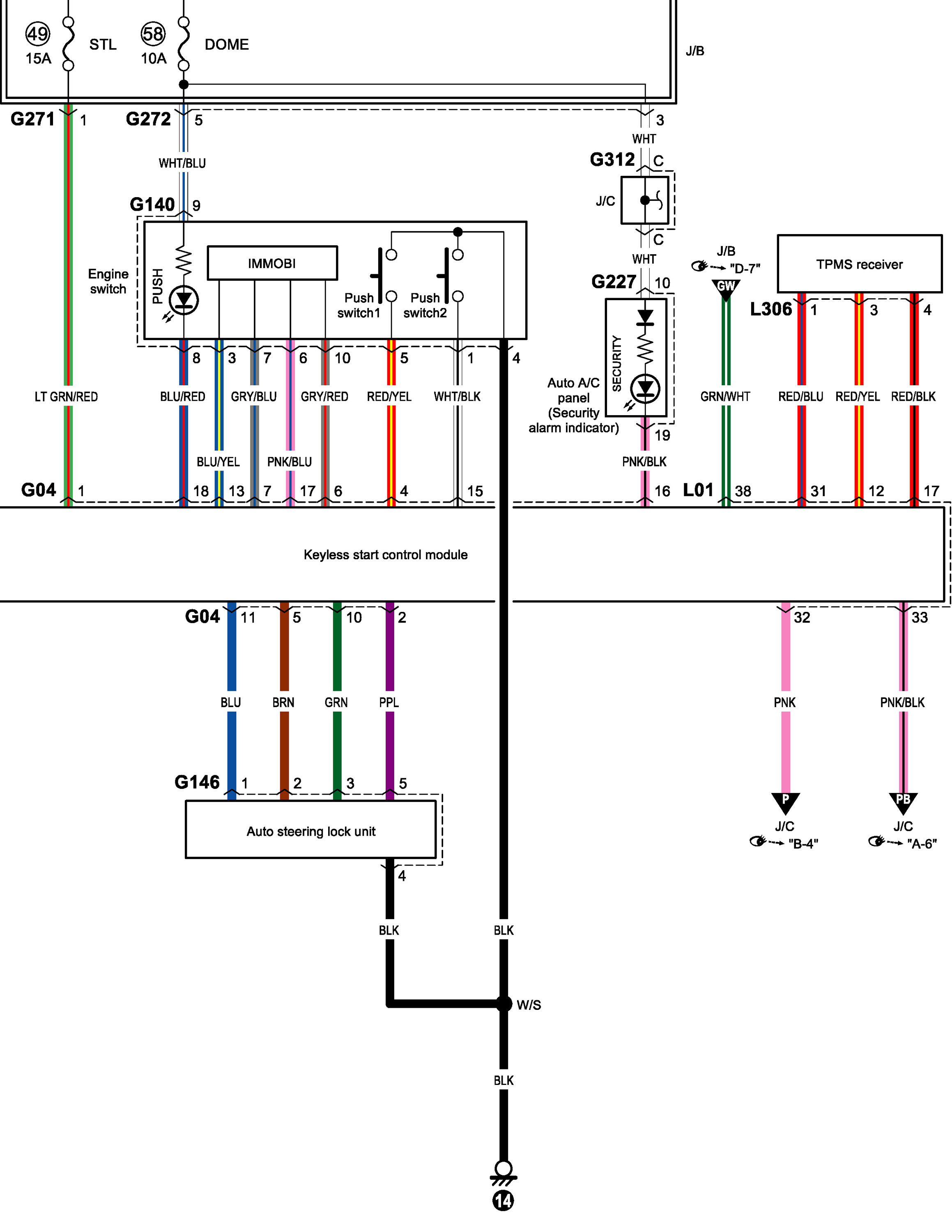

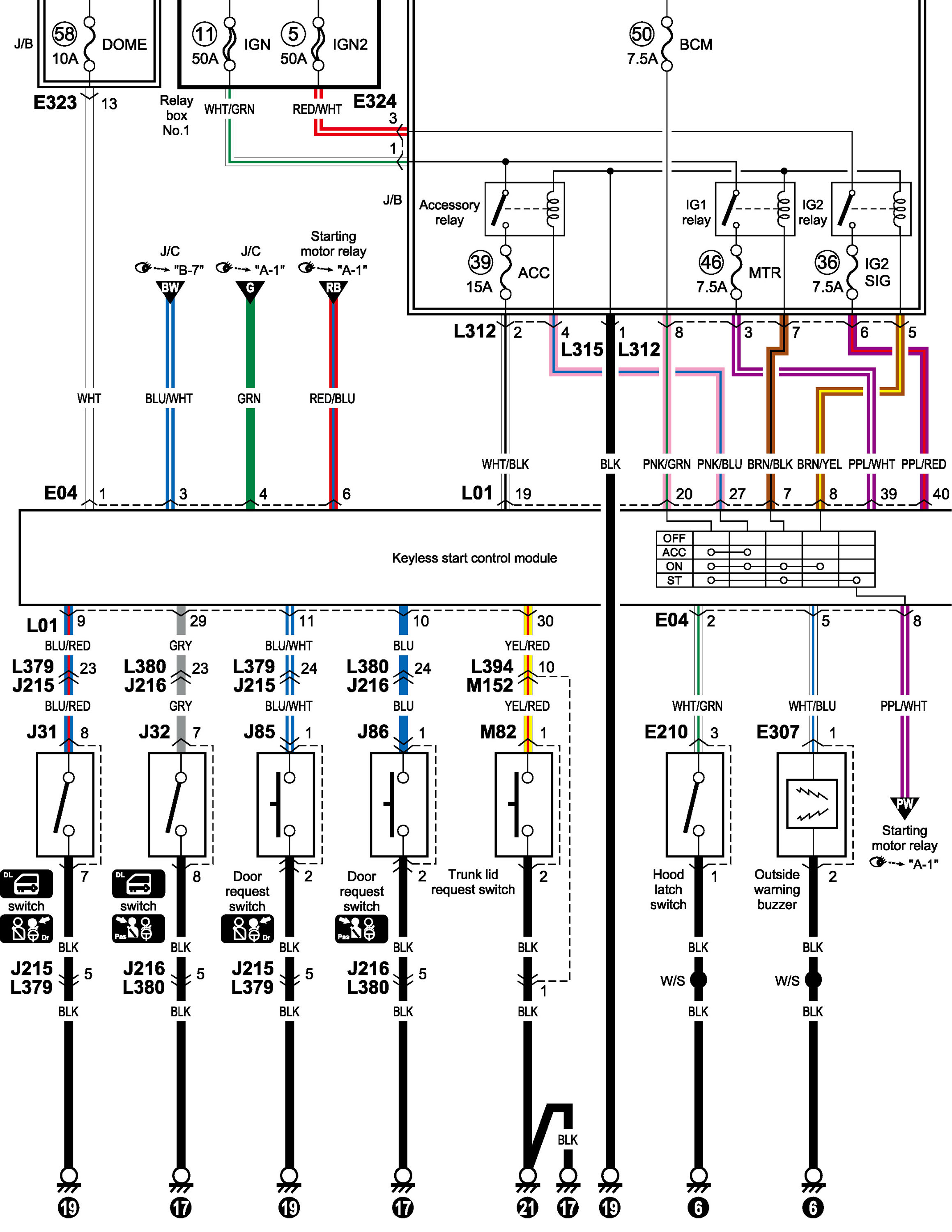

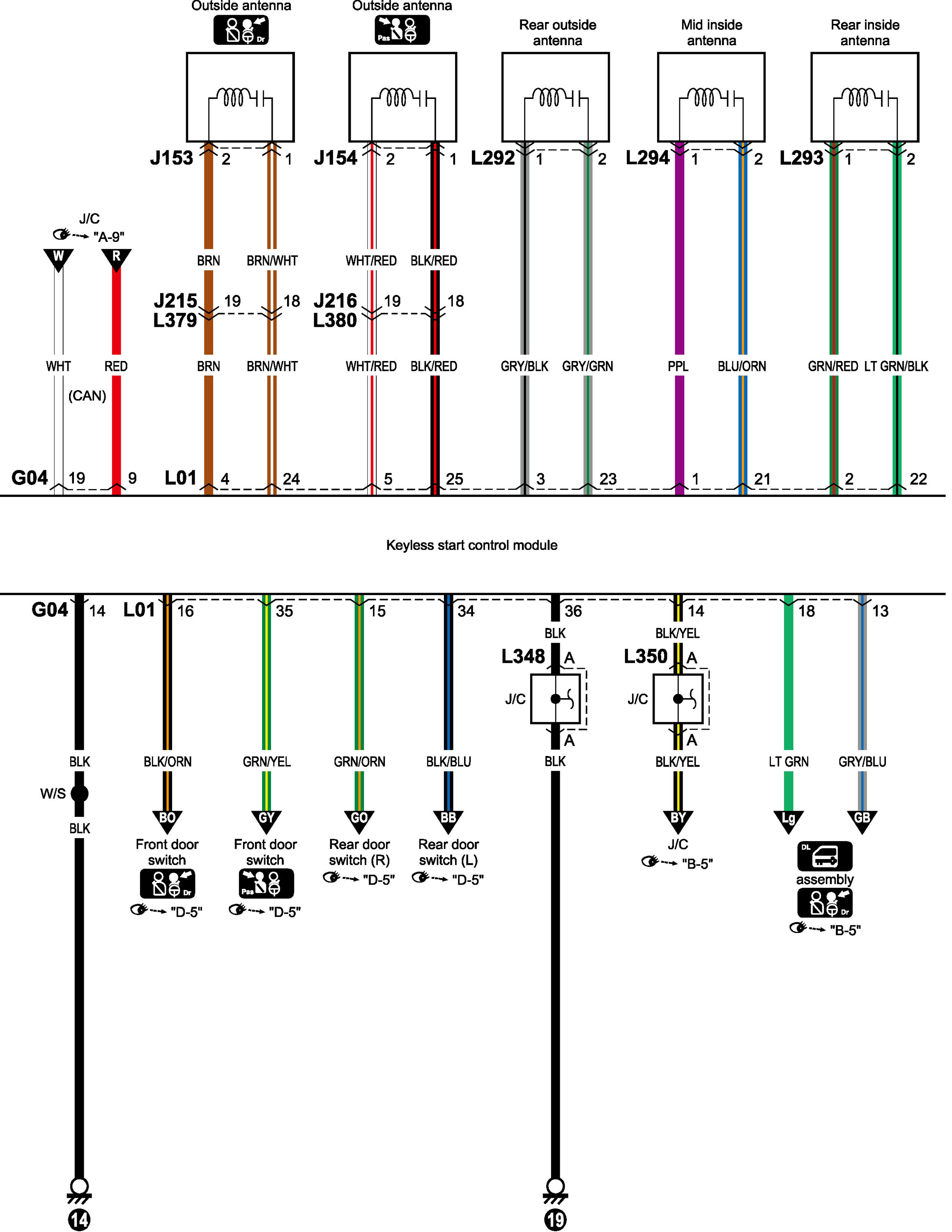

B-8 Keyless Start System Circuit Diagram
B-8 Keyless Start System Circuit Diagram
