CMP Sensor Removal and Installation

CMP Sensor Removal and Installation

Removal

1) Disconnect negative cable from battery.
2) Remove engine cover.
3) Disconnect connector from CMP sensor.
4) Remove CMP sensor from cylinder head.

Installation

Reverse removal procedure, noting the following points:

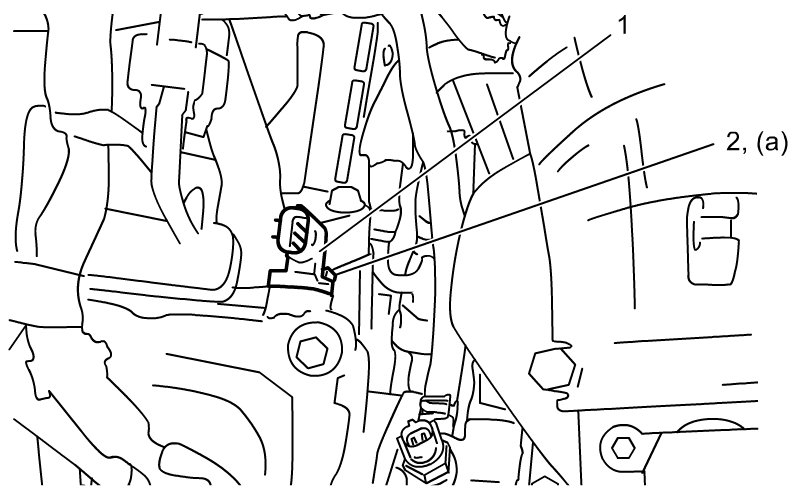

- Apply engine oil to O-ring of CMP sensor (1).
- Tighten CMP sensor bolt (2) to specified torque.

Tightening torque
CMP sensor bolt (a): 11 Nm (1.1 kgf-m, 8.5 lbf-ft)
