Exhaust Manifold

Exhaust Manifold

Tightening Torque
Exhaust manifold bolt* (a): 50 Nm (5.1 kgf-m, 37.0 lbf-ft)
Exhaust manifold nut* (b): 50 Nm (5.1 kgf-m, 37.0 lbf-ft)





Note:

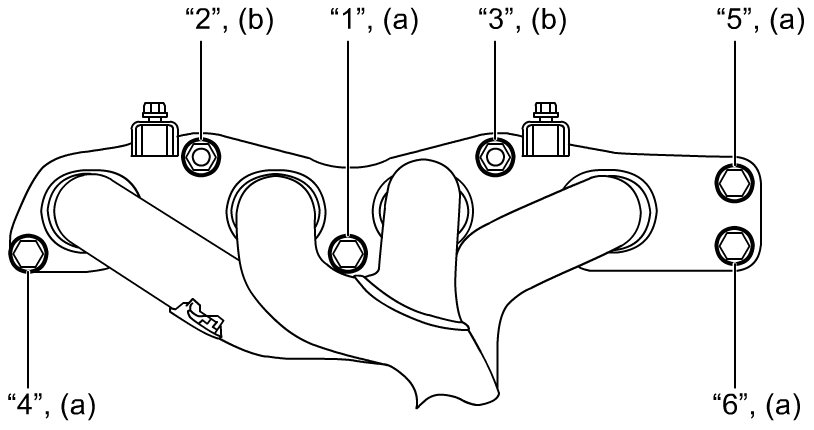

Tighten exhaust manifold bolts and nuts in numerical order evenly and gradually to specified torque.
