Flywheel

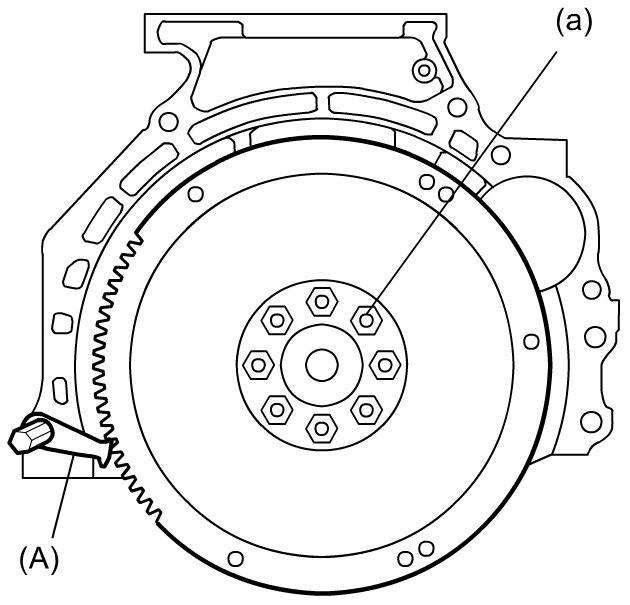

Flywheel / Drive Plate


- Tighten flywheel bolts or drive plate bolts to specified torque.

Tightening torque
Flywheel bolt (a): 70 Nm (7.1 kgf-m, 52.0 lbf-ft)
Drive plate bolt (a): 70 Nm (7.1 kgf-m, 52.0 lbf-ft)
