Transmission Range Sensor Inspection

Transmission Range Sensor Inspection

1) Disconnect negative (-) cable at battery.
2) Remove air cleaner assembly. Air Cleaner Assembly Removal and Installation

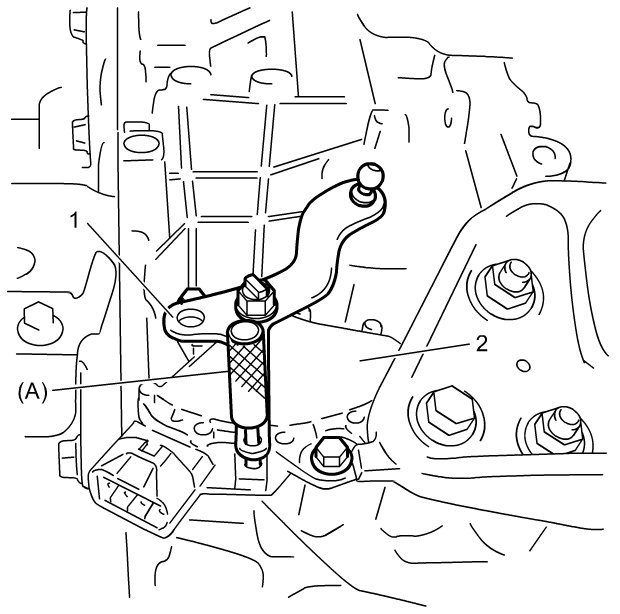

3) Shift select lever to "N" range and use special tool to check that aligning holes on manual select lever (1) and transmission range sensor (2) are aligned as shown in figure. If not, adjust transmission range sensor. Adjustments
Special Tool

(A): 09916-44310

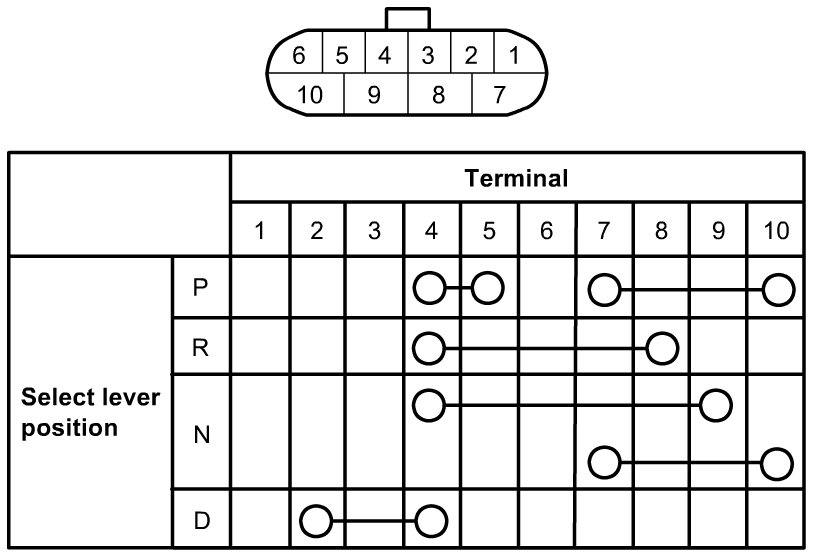

4) Check for continuity between terminals of transmission range sensor connector over each range shown in figure.
