Brake Pad: Specifications

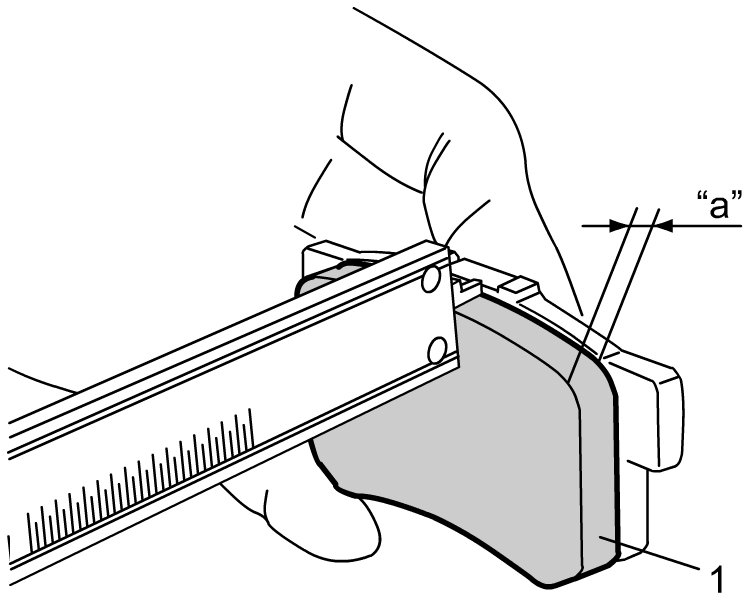

Front Brake Pad Thickness "a" (lining thickness)

Standard: 10 mm (0.39 in.)
Limit: 2 mm (0.08 in.)

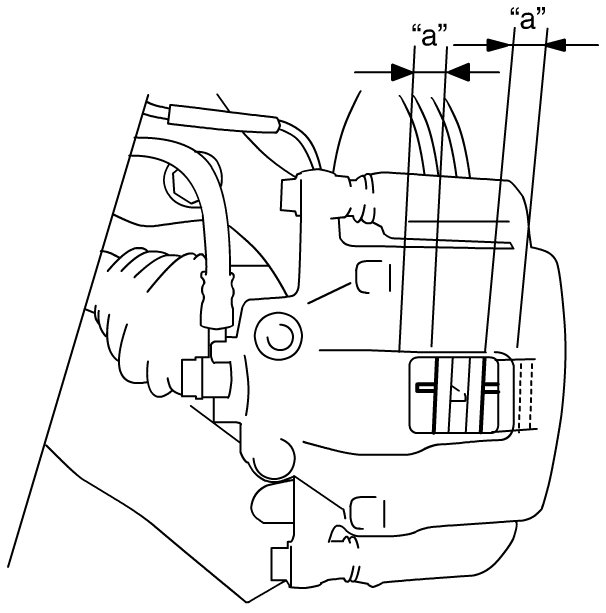

Rear Disc Brake Pad Thickness (lining thickness)
"a"

Standard: 9.0 mm (0.354 in.)
Limit: 1.0 mm (0.039 in.)
