Steering Control Module: Service and Repair

P/S Control Module Removal and Installation

Removal

1) Disconnect negative cable at battery.
2) Remove console box.

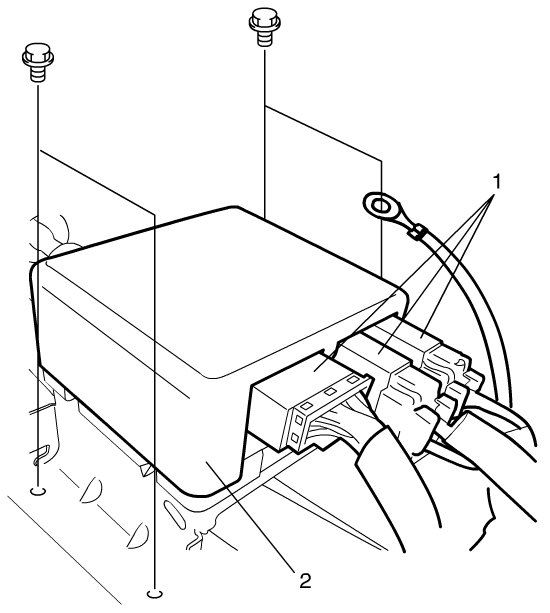

3) Disconnect connectors (1) from P/S control module.
4) Remove P/S control module (2) and bracket from floor panel.





5) Separate P/S control module and bracket.

Installation

Reverse removal procedure.
