Ignition Coil: Testing and Inspection

Ignition Coil (Plug Cap) Inspection

1) Remove ignition coil assemblies referring to Ignition Coil Assembly Removal and Installation Ignition Coil Assembly Removal and Installation.

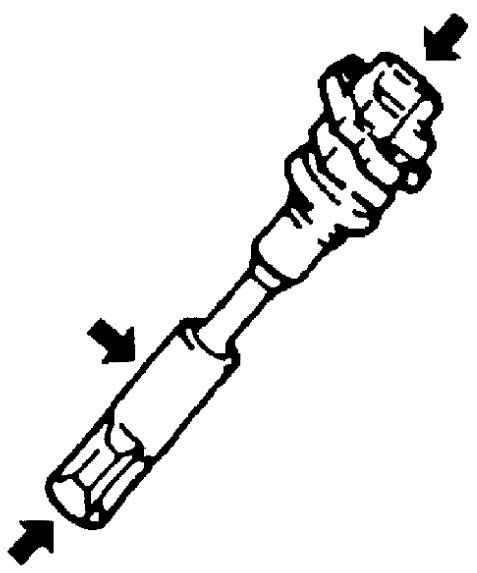

2) Check ignition coil assembly for damage, deterioration and terminal corrosion.

If defective condition is found, replace.





3) Install ignition coil assemblies referring to Ignition Coil Assembly Removal and Installation Ignition Coil Assembly Removal and Installation.
