ABS Component Location

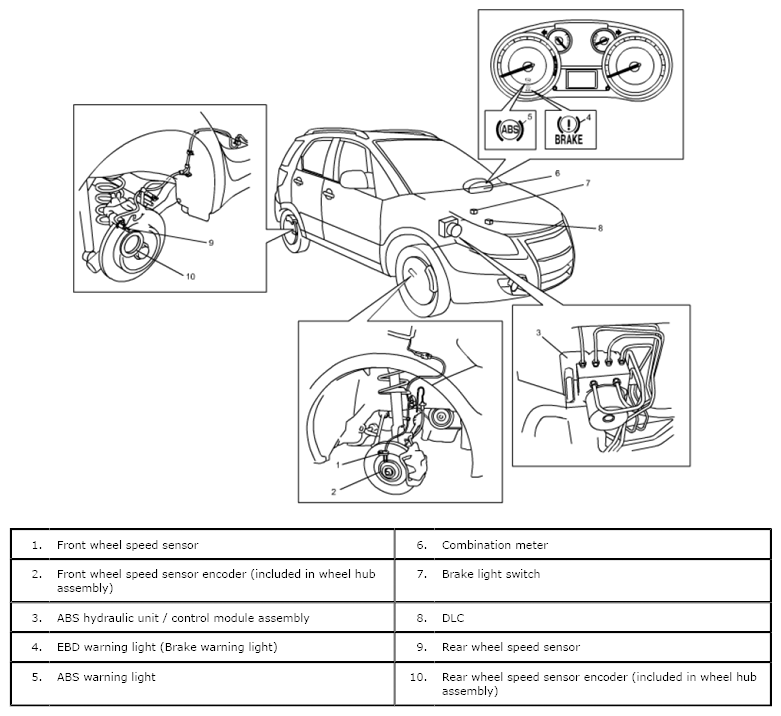

Fig 1: Identifying ABS Components Location

G06868558

Courtesy of SUZUKI OF AMERICA CORP.
