Audio System Component Location

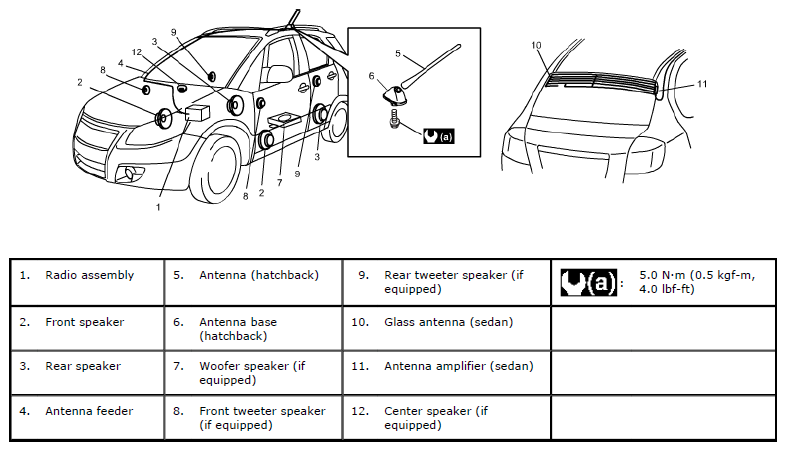

Fig 1: Identifying Audio System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
