Electronic Control System Component Location

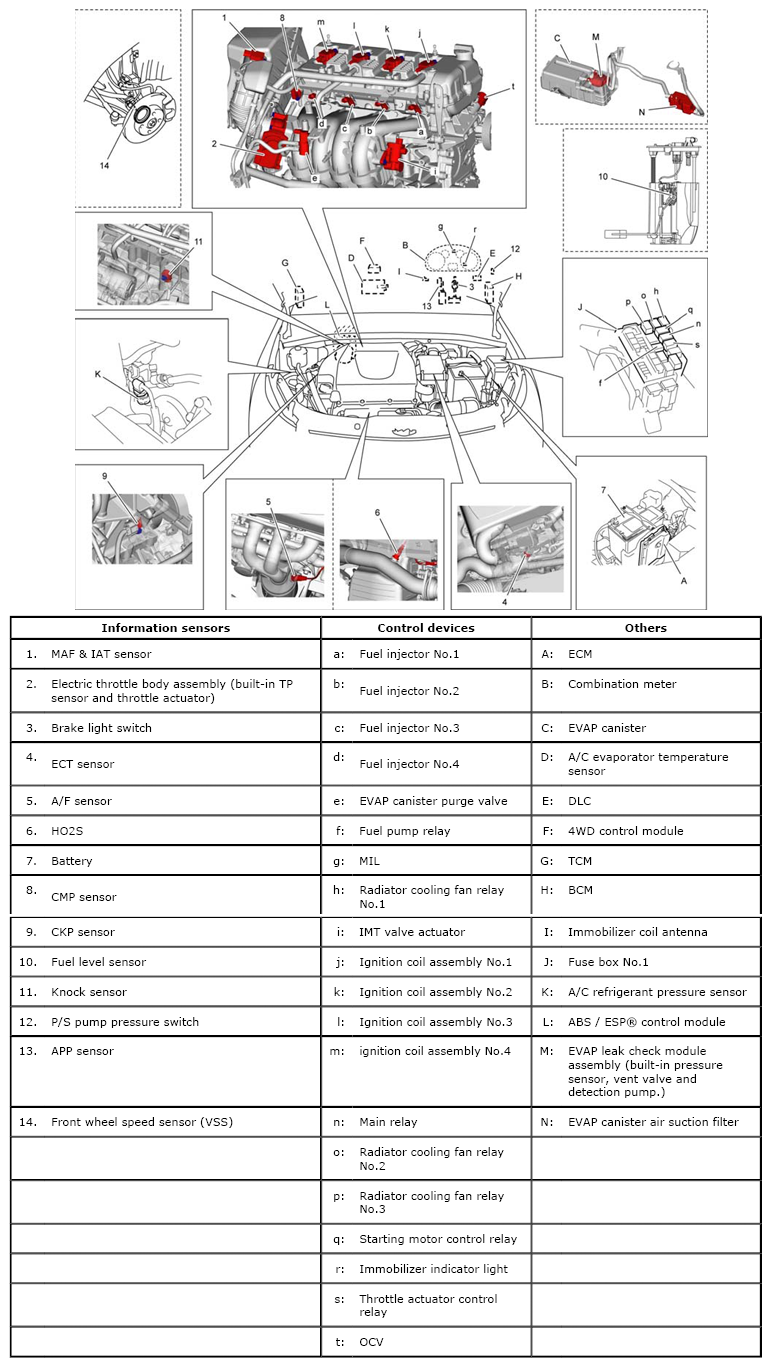

Fig 1: Identifying Electronic Control System Component Location
G06866609Courtesy of SUZUKI OF AMERICA CORP.
