4WD Control Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable from battery.
Remove center ventilation louver referring to CENTER VENTILATION LOUVER REMOVAL AND INSTALLATION .
Disconnect connector (1) from 4WD control module (2).
Remove 4WD control module.

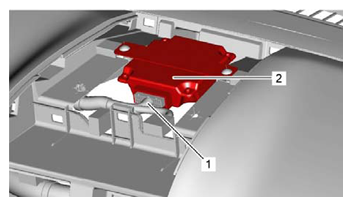

Fig 1: Identifying Connector And 4WD Control Module
Courtesy of SUZUKI OF AMERICA CORP.
