Manual Transaxle Assembly Components

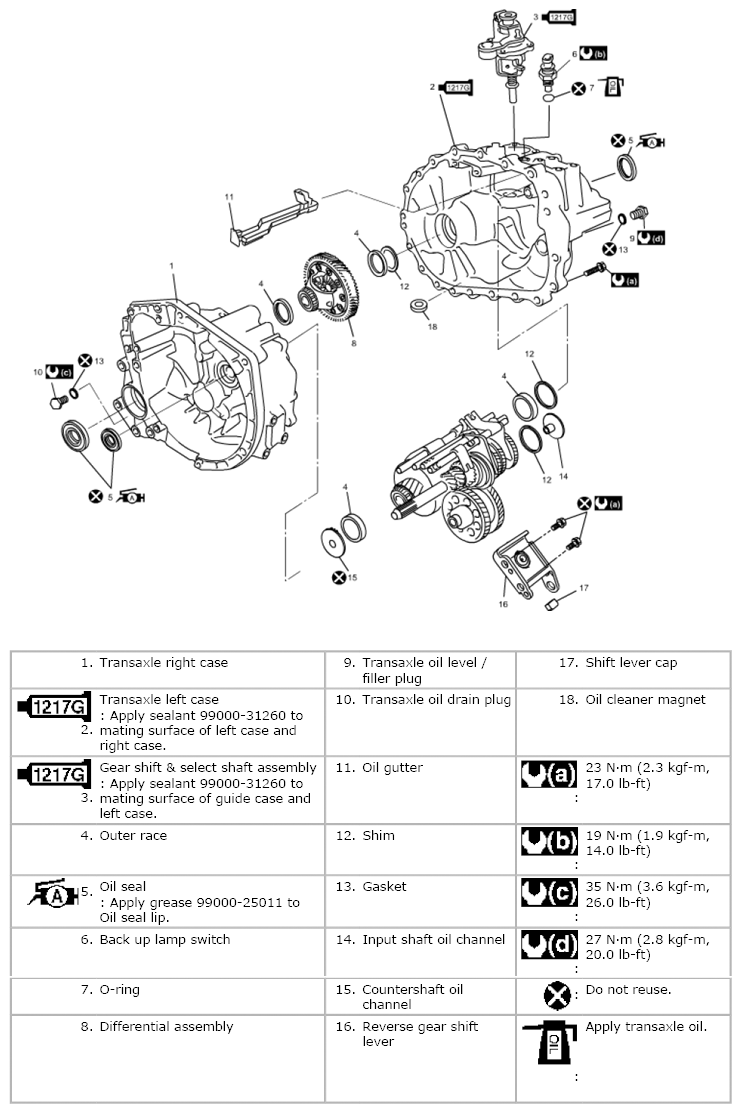

Fig 1: Identifying Manual Transaxle Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
