Immobilizer Control System Component Location

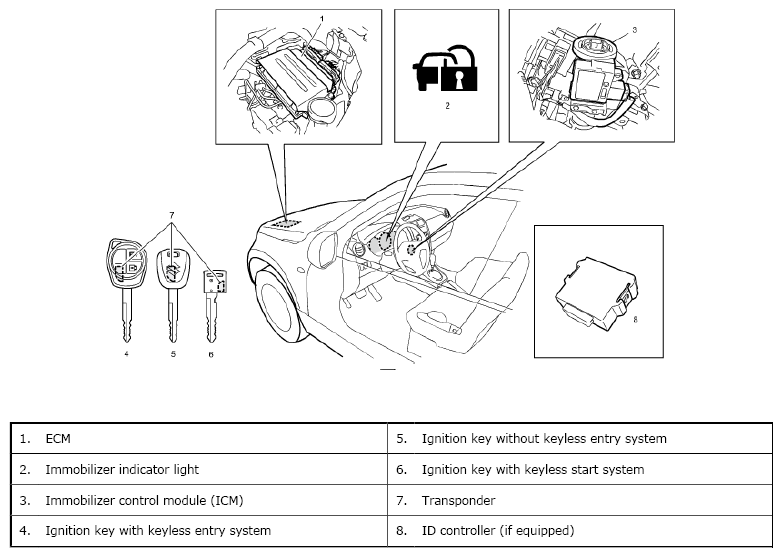

Fig 1: Immobilizer Control System Components Location
G08899737Courtesy of SUZUKI OF AMERICA CORP.
