CAN Communication Signal

CAN communication signal (high) (1):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
1	+	G04-9
1	-	G04-14

CAN communication signal (low) (2):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
2	+	G04-19
2	-	G04-14

Measurement condition

Ignition mode: ON

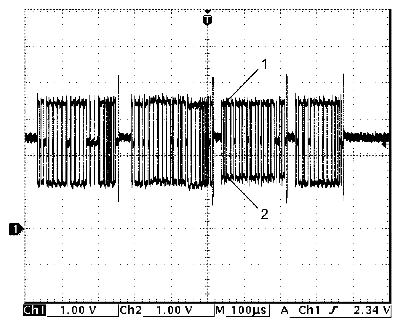

Fig 1: CAN Communication Signal (Low) Waveform
Courtesy of SUZUKI OF AMERICA CORP.
