Keyless Entry/TPMS Receiver Signal

Power supply for keyless entry/TPMS receiver (1):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
1	+	L01-31
1	-	G04-14

Keyless entry/TPMS receiver signal (2):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
2	+	L01-12
2	-	G04-14

Measurement condition

Remote controller: Any one of the buttons is pushed

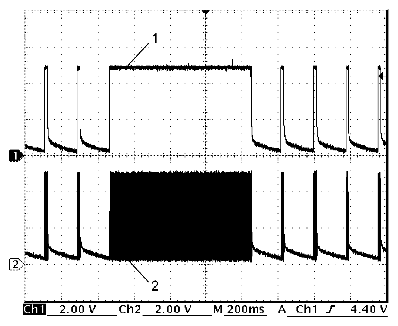

Fig 1: Keyless Entry / TPMS Receiver Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
