Mid Inside Antenna Signal

Mid inside antenna (+) signal (1):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
1	+	L01-1
1	-	G04-14

Mid inside antenna (-) signal (2):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
2	+	L01-21
2	-	G04-14

Measurement condition

Any one of doors: Open → Close

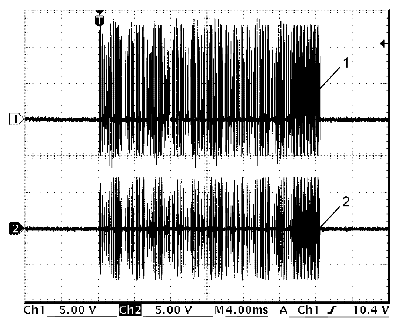

Fig 1: Mid Inside Antenna Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
