Rear Inside Antenna Signal

Rear inside antenna (+) signal (1):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
1	+	L01-2
1	-	G04-14

Rear inside antenna (-) signal (2):

TERMINAL CHANNEL REFERENCE CHART

Channel	Probe	Terminal No.
2	+	L01-22
2	-	G04-14

Measurement condition

Any one of doors: Open → Close

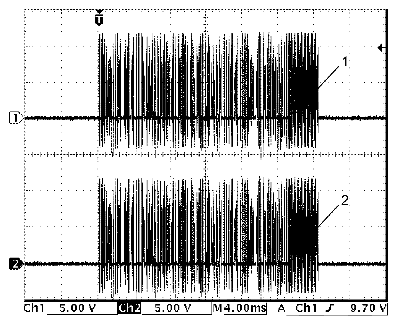

Fig 1: Rear Inside Antenna Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
