Operation Area

Engine can be started when remote controller is within mid inside antenna detection area (1).

NOTE: Keyless engine start function may not operate when remote controller is on partition trim or instrument panel, in one of the storage boxes, around foot area of driver side or passenger side, or in door pocket, etc.

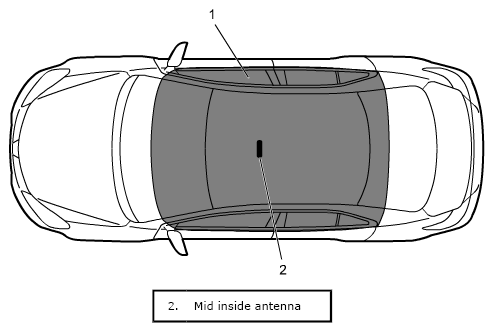

Fig 1: Identifying Mid Inside Antenna Detection Area
G06527925Courtesy of SUZUKI OF AMERICA CORP.
