Remote Controller Lock-In Vehicle Prevention Function

This function prevents driver from locking doors and leaving vehicle with remote controller left behind in vehicle compartment.

When mid inside antenna (1) or rear inside antenna (2) detects remote controller (i.e., remote controller is in the vehicle compartment) under the following condition, keyless start control module outputs an unlock doors request to BCM through CAN communication.

• Doors are locked with key cylinder (emergency key) or door lock knob with one of the doors open.
  NOTE:

  • Remote controller lock-in vehicle prevention function may not operate when remote controller is on instrument panel, in one of the storage boxes, around the foot area of driver side or passenger side, or in door pocket, etc.
  • When keyless start system function is off, remote controller lock-in vehicle prevention function does not operate.

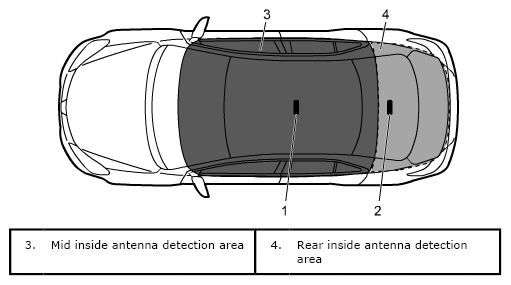

  Fig 1: Identifying Mid Inside Antenna And Rear Inside Antenna Detection Area

  Courtesy of SUZUKI OF AMERICA CORP.
