Operation Area

Distance between remote controller and rear outside antenna (2) should be within approximately 80 cm (31.5 in, 2.6 ft) (1), to ensure operation of trunk lid opener function.

NOTE:
  • Trunk lid opener function may not operate if remote controller is placed too close to vehicle, near to the ground, or too high up.
  • Trunk lid opener function may not operate if the same type of vehicles equipped with keyless start system are placed next to each other, and both of keyless start systems are operated at the same time.
  • Trunk lid opener function may not operate if remote controller which has been registered and another unregistered one are both carried at the same time.

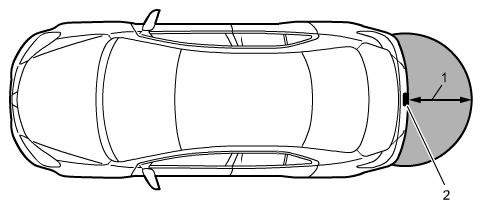

Fig 1: Identifying Distance Between Remote Controller And Rear Outside Antenna
G06527921Courtesy of SUZUKI OF AMERICA CORP.
