Keyless Start Control Module Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove driver side instrument panel undercover.
  3. Disconnect keyless start control module connectors (1) and harness clamp.
  4. Remove nuts (2), and then remove keyless start control module (3).

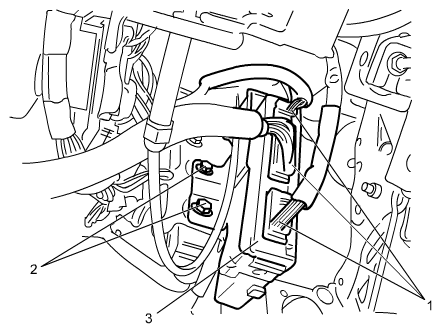

    Fig 1: Identifying Keyless Start Control Module With Connector And Nuts
    G06527956Courtesy of SUZUKI OF AMERICA CORP.
