Keyless Start Control Module Input/Output Diagram

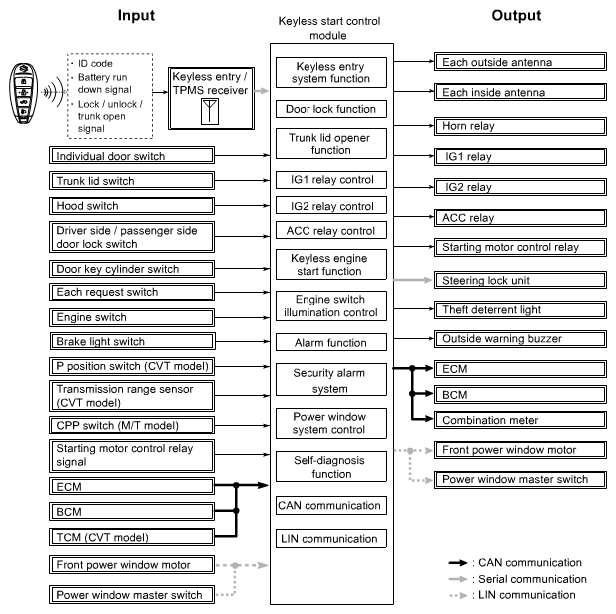

Fig 1: Keyless Start Control Module Input / Output Diagram
G06527926Courtesy of SUZUKI OF AMERICA CORP.
