CVT Assembly Components

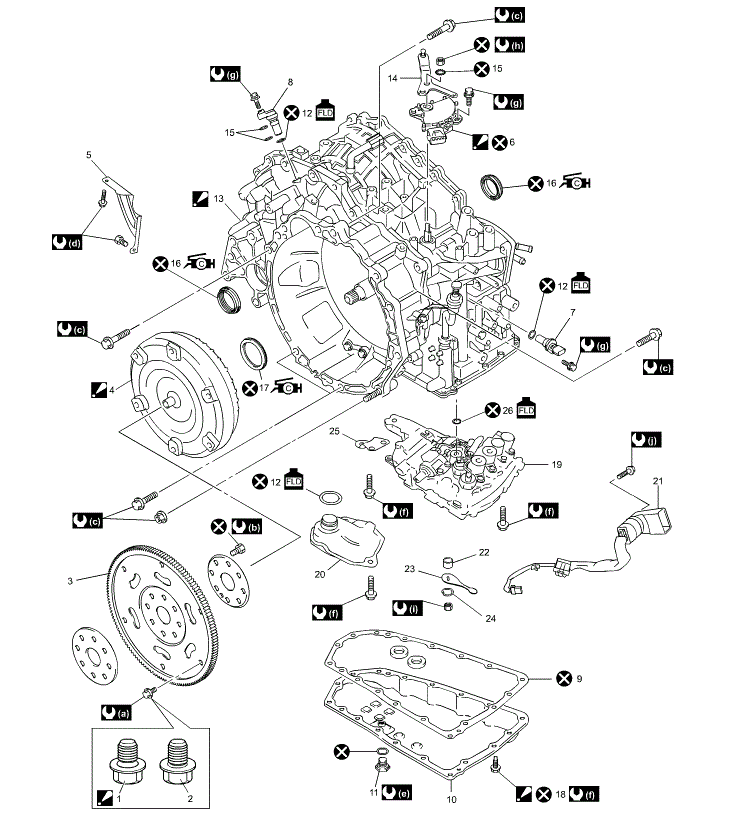

Fig 1: Torque Converter Replacement Components With Torque Specifications (1 Of 2)
G00532187Courtesy of SUZUKI OF AMERICA CORP.

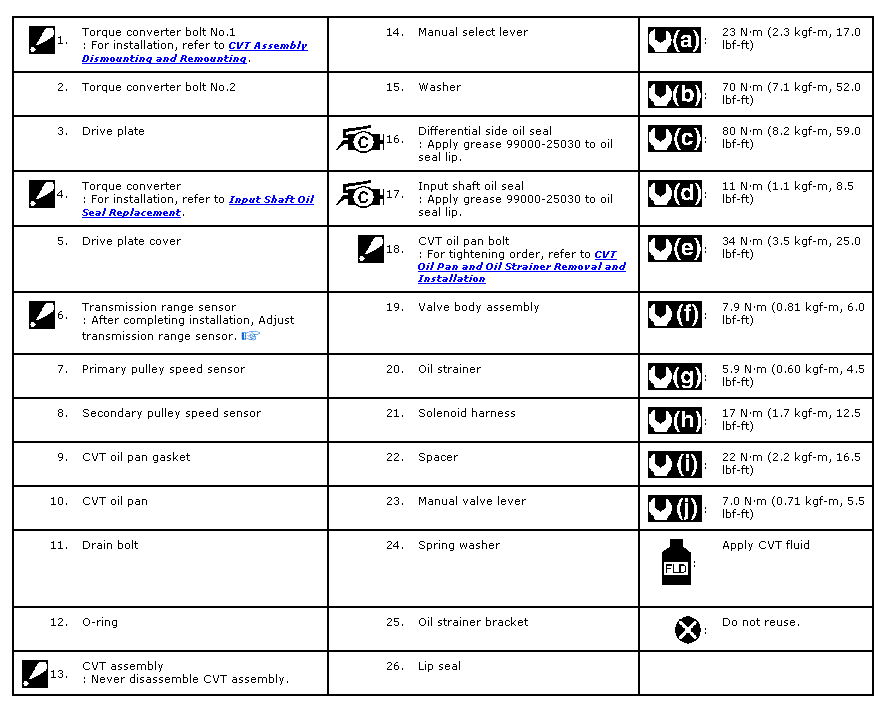

Fig 2: Torque Converter Replacement Components With Torque Specifications (2 Of 2)
G00532112Courtesy of SUZUKI OF AMERICA CORP.
