Manual Mode Shift Switch Inspection
- Remove console box, see CENTER CONSOLE BOX REMOVAL AND INSTALLATION ..
- Disconnect select lever connector (1).

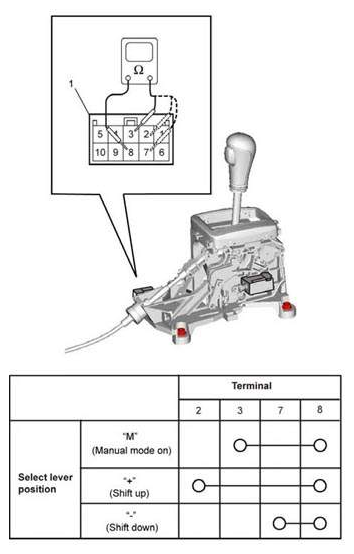

- Check for continuity between terminals at each switch position. If check result is not as specified, replace select lever assembly.
