Select Cable Components

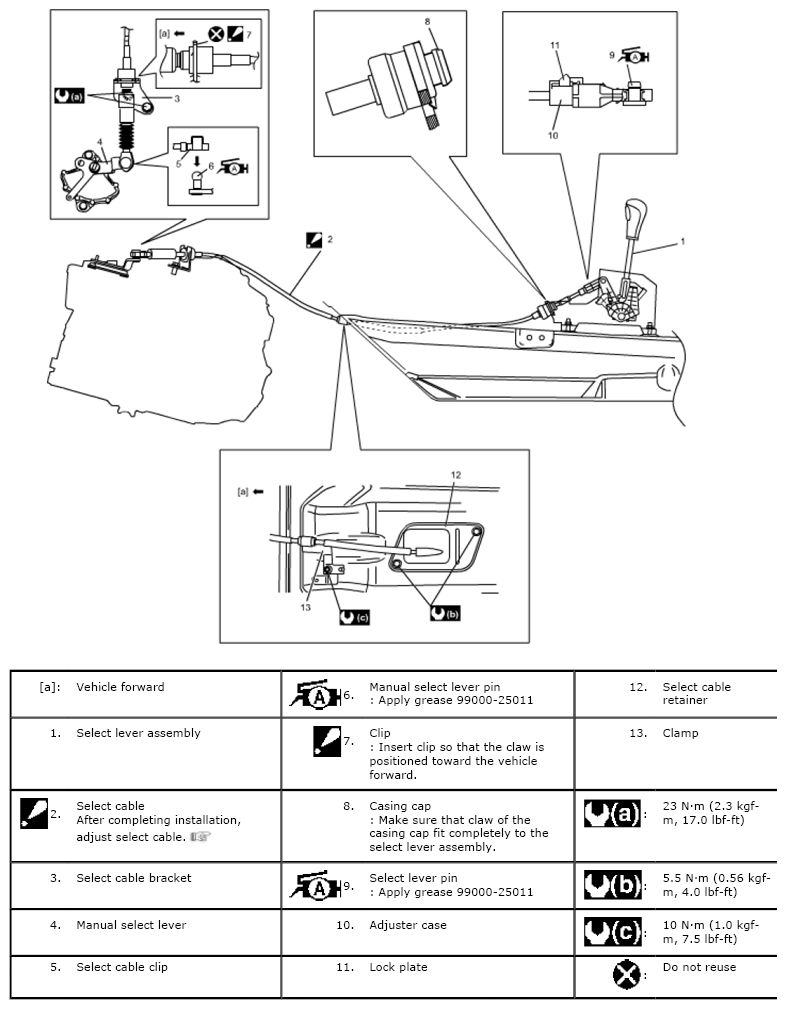

Fig 1: Select Lever Assembly With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
