Audio System Component Location

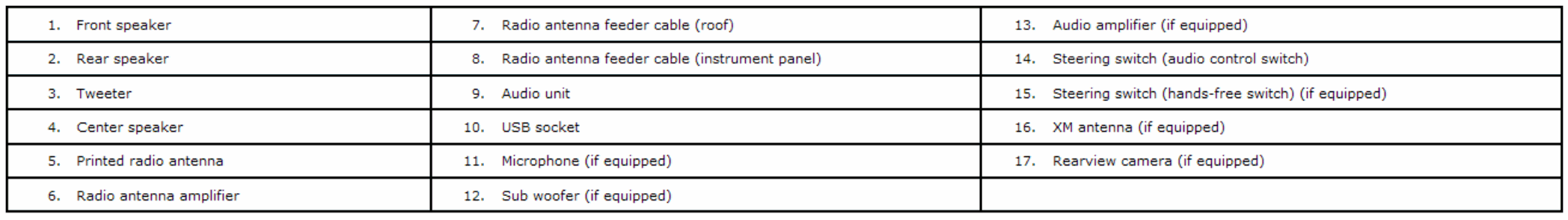

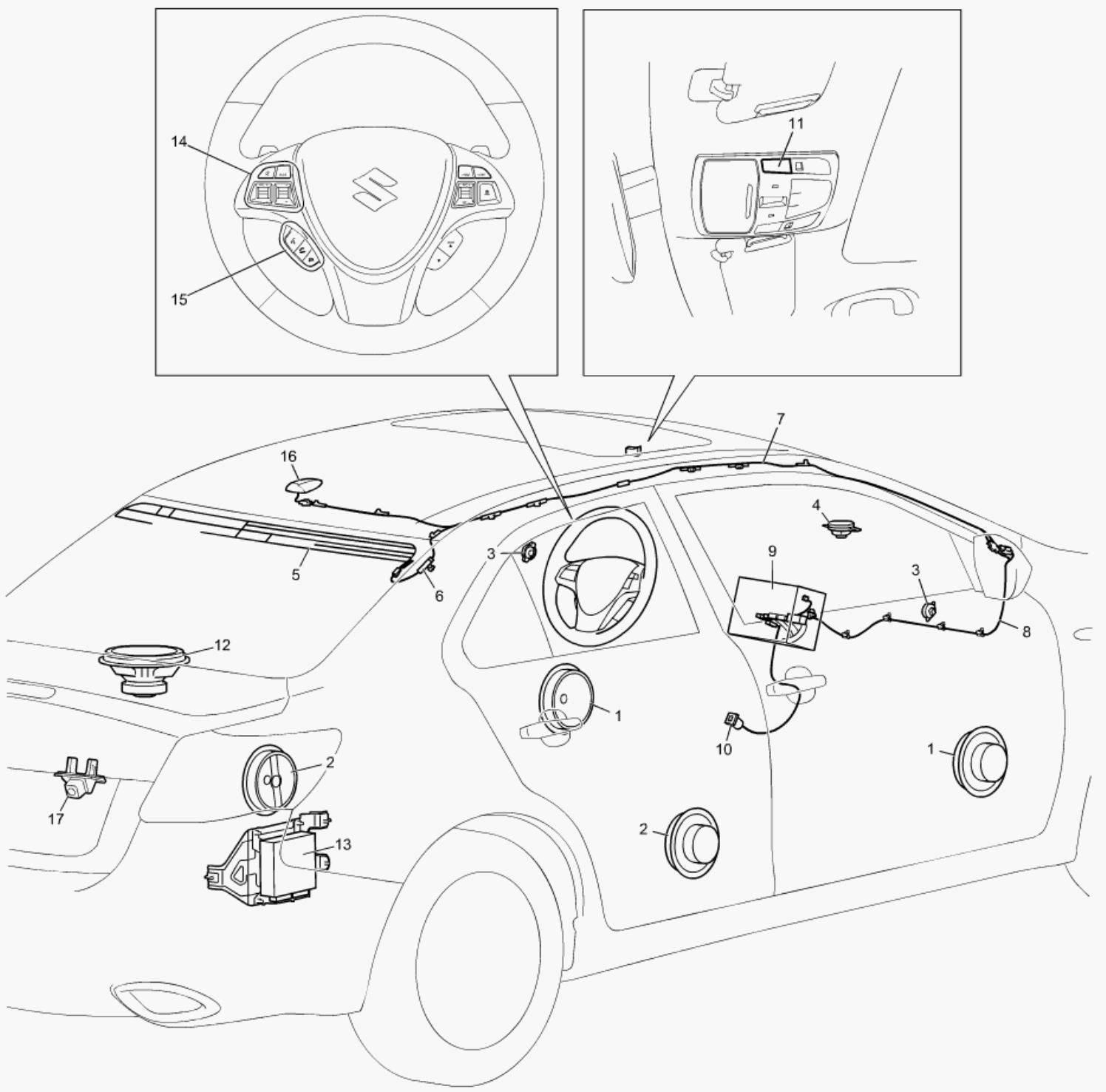

Fig 1: Identifying Audio System Component Location (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Audio System Component Location (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
