Buzzer Beep Patterns

Input signal/error codes are indicated by the number of times the buzzer beeps. The following example shows beep patterns for input signal code "41" and error code "62".

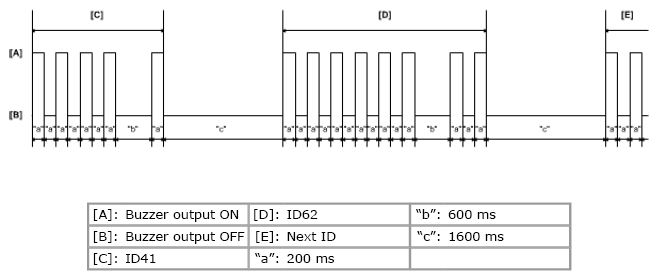

Fig 1: Identifying Buzzer Beep Patterns
G06530135Courtesy of SUZUKI OF AMERICA CORP.
