Power Steering Control System Component Location

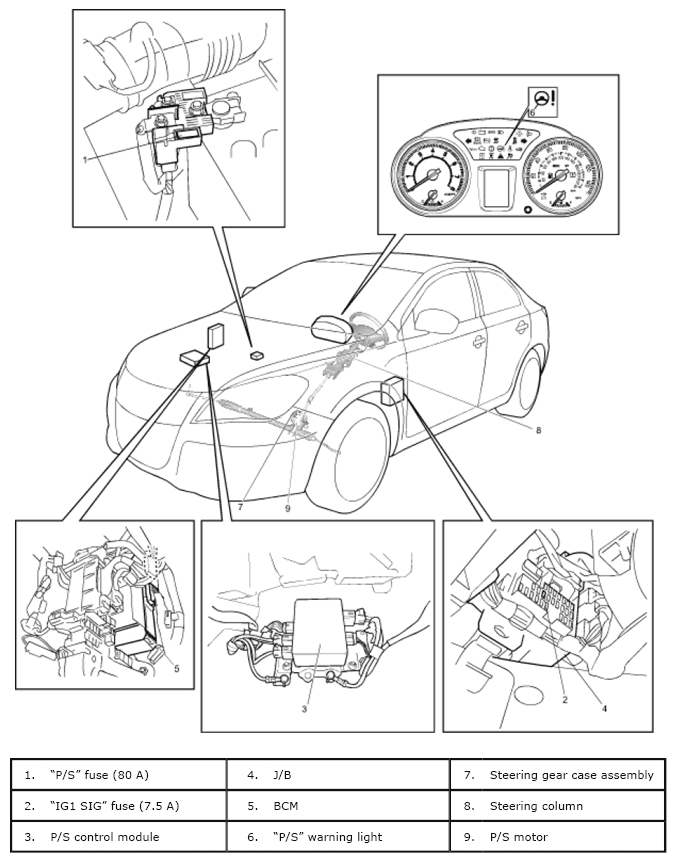

Fig 1: Identifying Power Steering Control System Component Location
G06528921Courtesy of SUZUKI OF AMERICA CORP.
