P/S motor signal

P/S MOTOR TERMINALS REFERENCE

Channel	Probe	Terminal No.
CH1	+	"P/S control module (P/S motor (1P))" connector -1
CH1	-	Ground
CH2	+	"P/S control module (P/S motor (2P))" connector -1
CH2	-	-
CH3	+	"P/S control module (P/S motor (2P))" connector -2
CH3	-	-

Measurement condition

With engine idling after warming up, turn steering wheel from straight-ahead position to both directions.

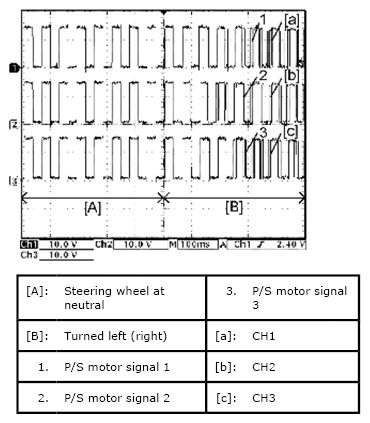

Fig 1: P/S Motor Signal Waveform Graph
Courtesy of SUZUKI OF AMERICA CORP.
