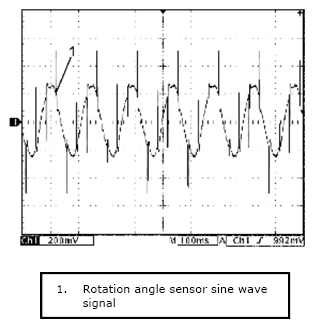

Rotation Angle Sensor Sine Wave Signal

ROTATION ANGLE SENSOR TERMINALS REFERENCE

Channel Probe Terminal No.
CH1 + "P/S control module (rotation angle sensor/torque sensor)" connector - 4
- "P/S control module (rotation angle sensor/torque sensor)" connector - 3

Measurement condition
