Steering
>>
Power Steering
>>
Power Assisted Steering System
>>
Diagnostic Information and Procedures
>>
P/S Control Module Power Supply and Ground Circuit Check
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

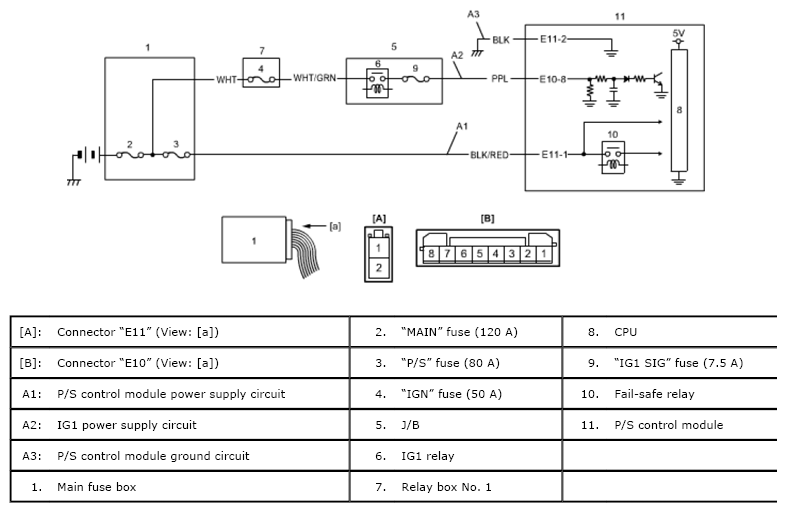

Fig 1: P/S Control Module Power Supply And Ground Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
