Steering Gear Case Assembly Components

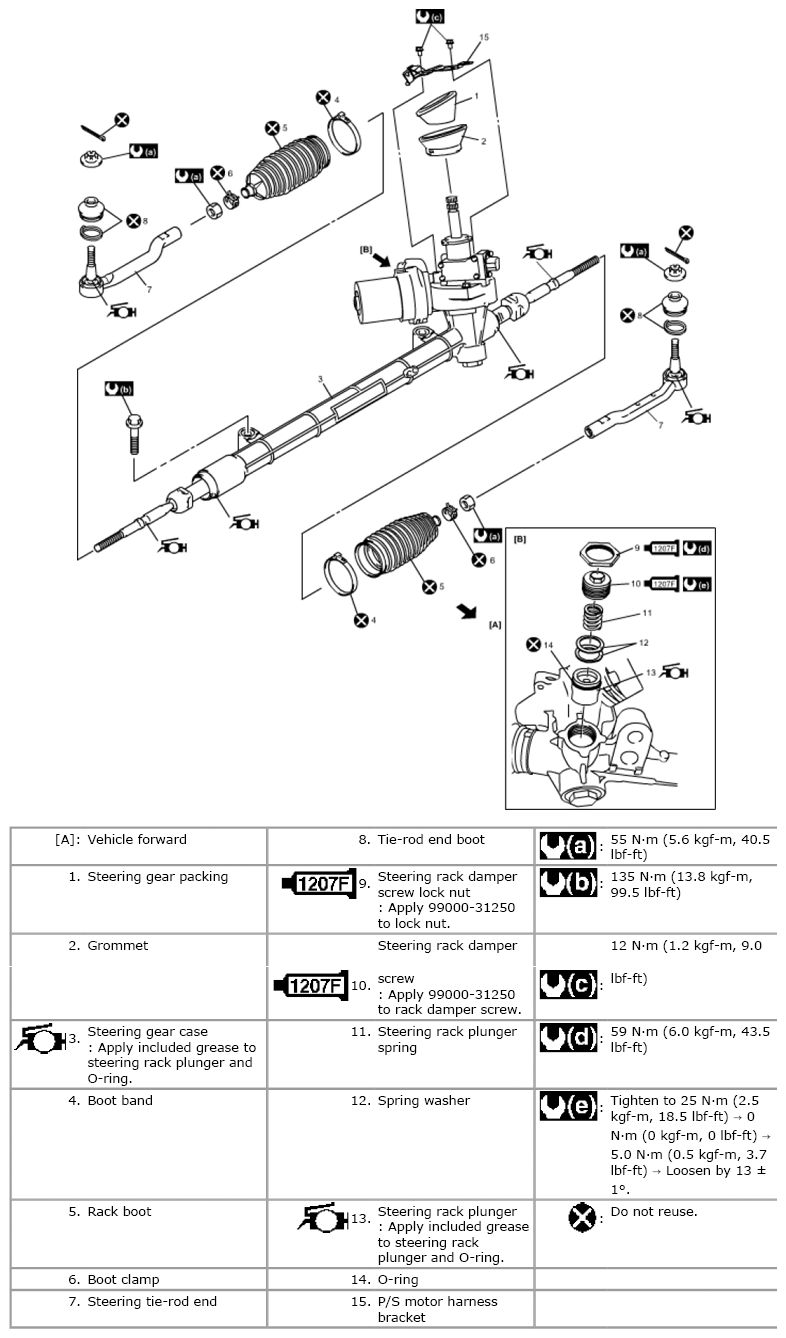

Fig 1: Steering Gear Case Assembly Replacement Components With Torque Specifications
G06528942Courtesy of SUZUKI OF AMERICA CORP.
