Manual Transaxle Assembly Components

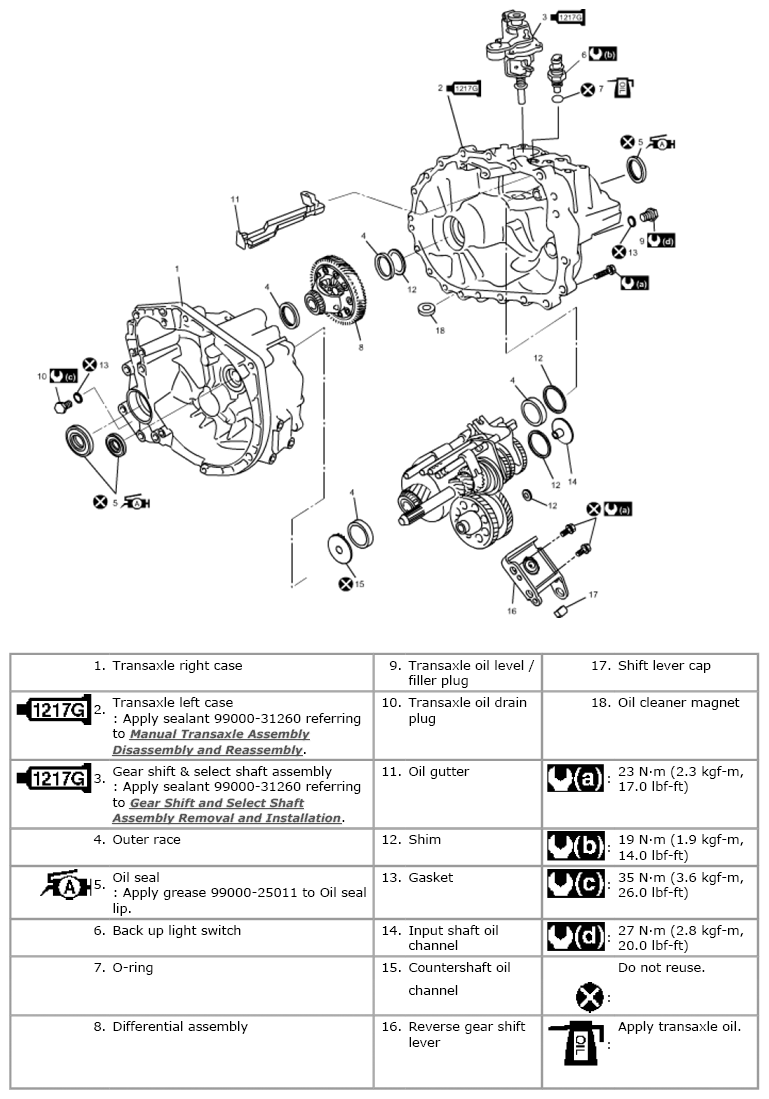

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications
G06528784Courtesy of SUZUKI OF AMERICA CORP.
