EPS System Wiring Circuit Diagram: Notes

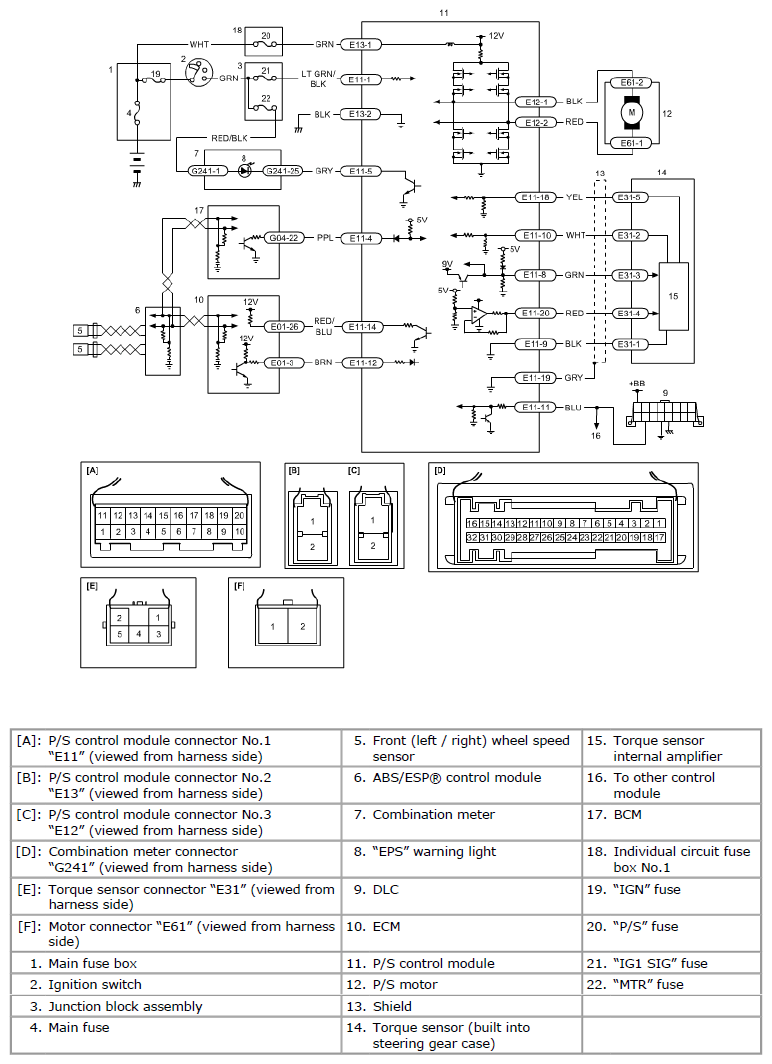

Fig 1: EPS System Wiring Circuit Diagram

G06867556

Courtesy of SUZUKI OF AMERICA CORP.
