SIM Card - Card Computer (eCall) - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
Remove the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
Loosen for two revolutions the lower LH screw that attaches the car computer to the bracket.

Courtesy of TESLA, INC.

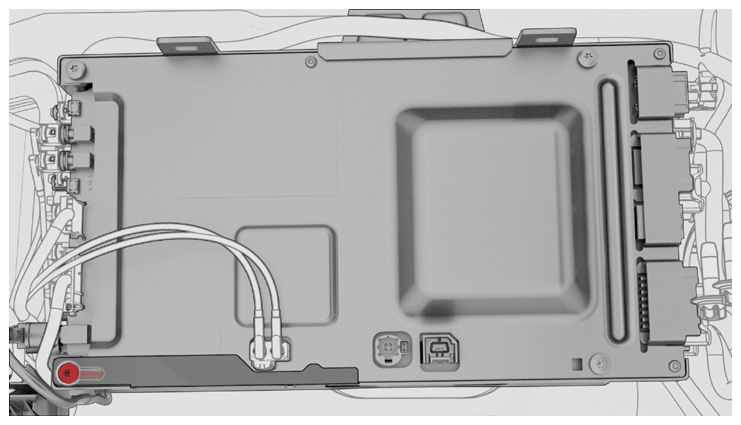

Remove and discard the screw that attaches the EMI shield to the bottom of the car computer.

Courtesy of TESLA, INC.

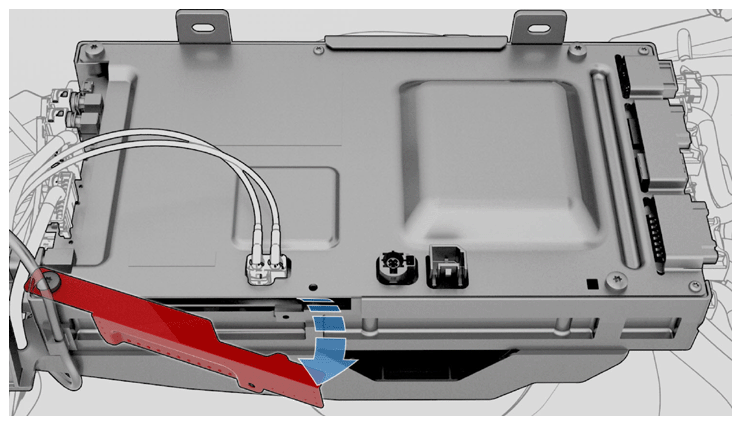

Lower the EMI shield.

Courtesy of TESLA, INC.

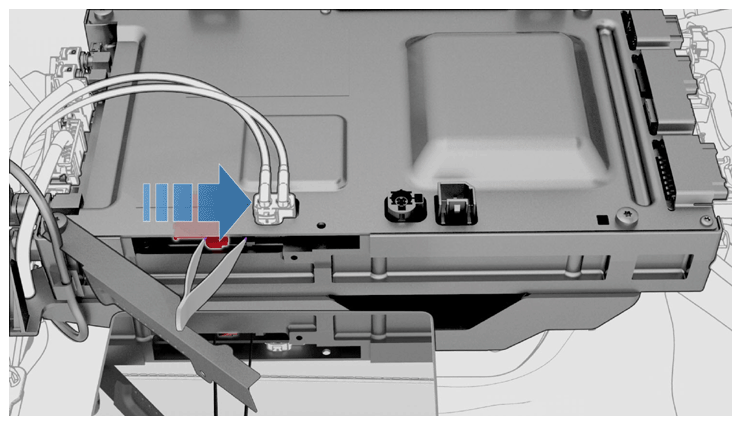

Use a mirror and tweezers to move the catch to the right, and release the SIM card from the slot in the car computer.

Courtesy of TESLA, INC.

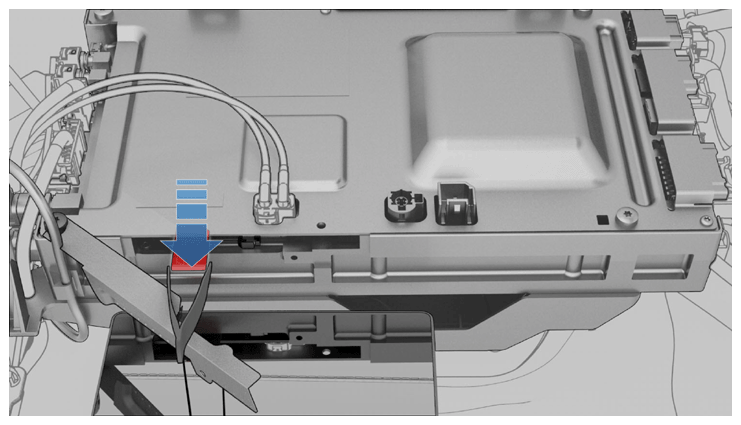

Use the tweezers to remove the SIM card from the car computer.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

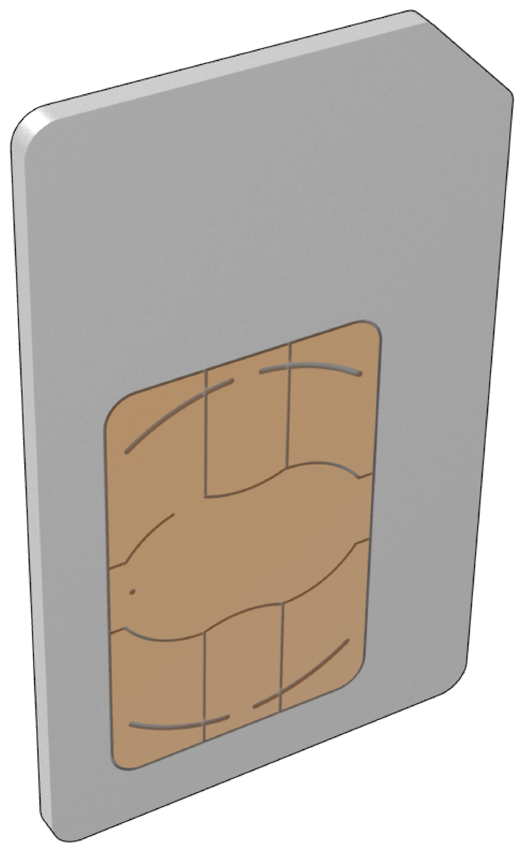

Destroy the SIM card by cutting the card in half through the center of the gold pads, and then cut each piece into half, resulting in 4 pieces.
CAUTION: It is mandatory to destroy the SIM card to protect user data.
