Multimeter (LoZ Setting)
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
Last modifed: 15/02/2023 06:33:50
This procedure describes how to select the low impedance mode on Fluke multimeters without LoZ mode on the mode selector.
- Turn the dial to OFF to switch off the multimeter.
- Press and hold the RANGE button.

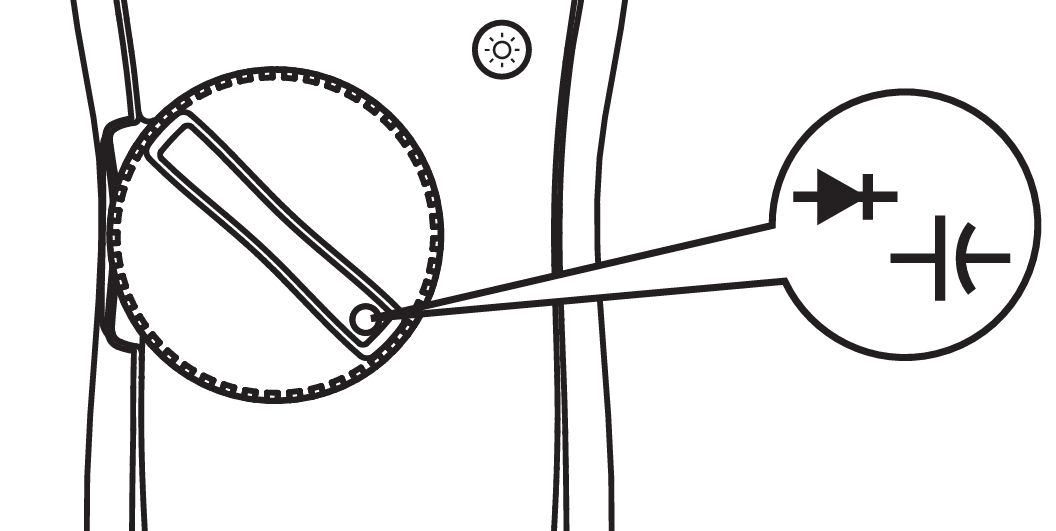

- Turn the dial to the DIODE/CAPACITANCE
test mode.
- Wait until LCAP shows on the display, and then release the RANGE button.

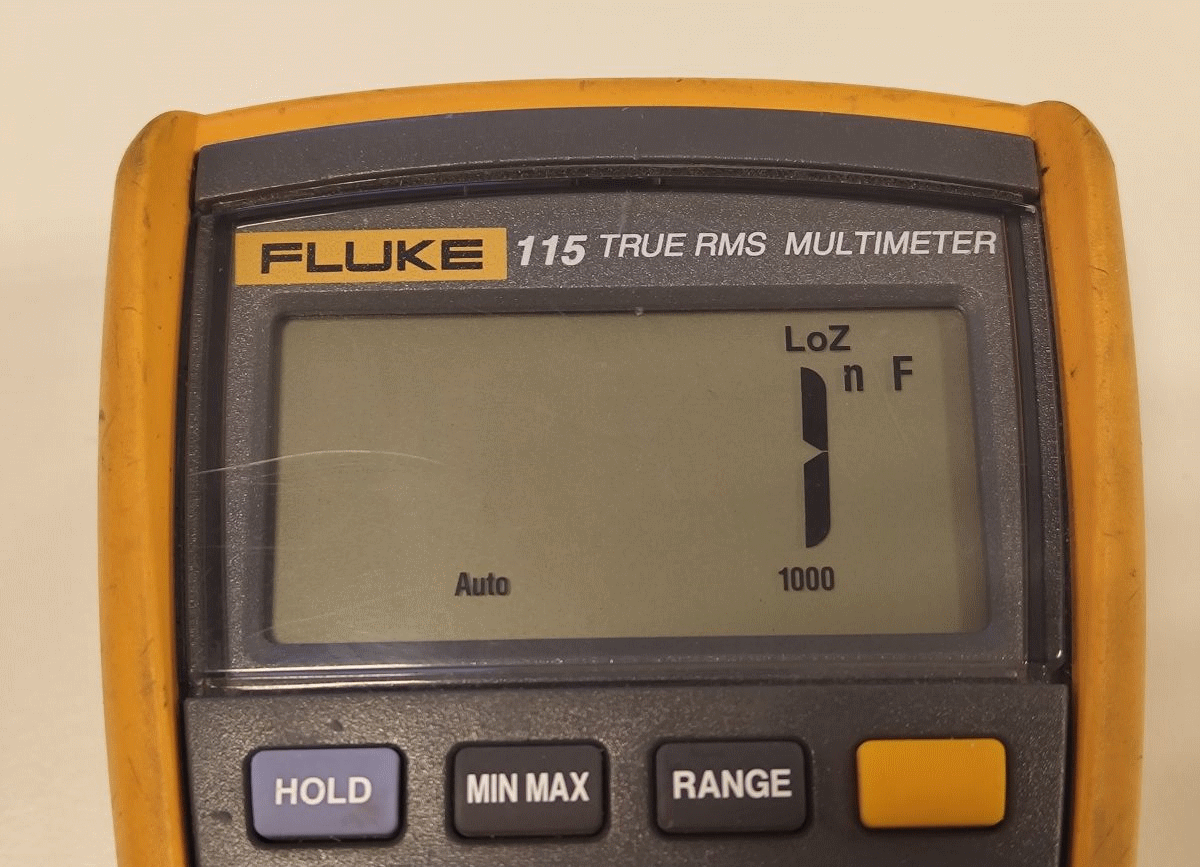

- Press the yellow button to activate the LoZ
(low impedance) mode.NOTE: LoZ will show at the top right corner of the display.
