Mechanism - Pivot - Touchscreen - Remove And Replace: Remove
WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the touchscreen.

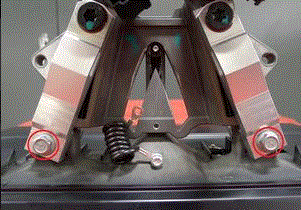

- Remove and discard the bolts (x2) that attach the touchscreen pivot mechanism to the display housing.
Tip: Use of the following tool(s) is recommended:
- 2 in extension
- 10 mm socket
- Flex head ratchet/flex head torque wrench

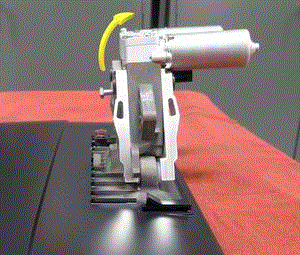

- Remove the touchscreen pivot mechanism from the display housing.NOTE: Lift and tilt the mechanism off of the display housing.
