Center Console - Remove And Install: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, install the center console into the vehicle as follows:
    1. Tilt the front of the center console downwards.
    2. Slide the center console towards the front of the vehicle.
    3. Tilt the rear of the center console downwards until it is in place.
  2. Open the center console rotating lid.
  3. Connect the electrical connector in the rear of the center console.
    CAUTION: Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.

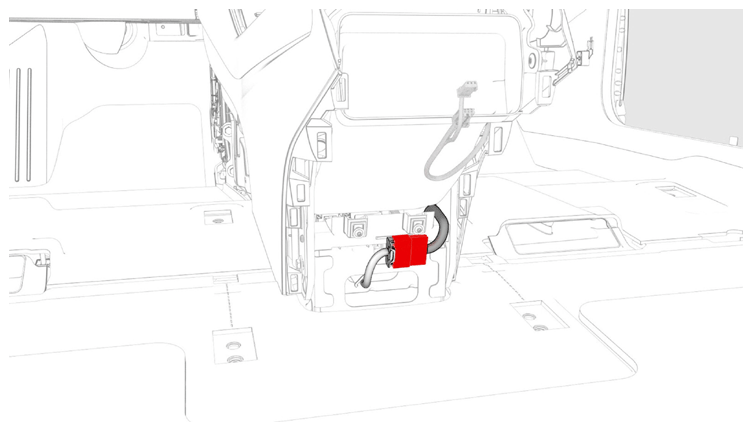

    G14824384Courtesy of TESLA, INC.
  4. Install the bolt that attaches the RH rear of the center console to the body.

    7 N.m (5.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)

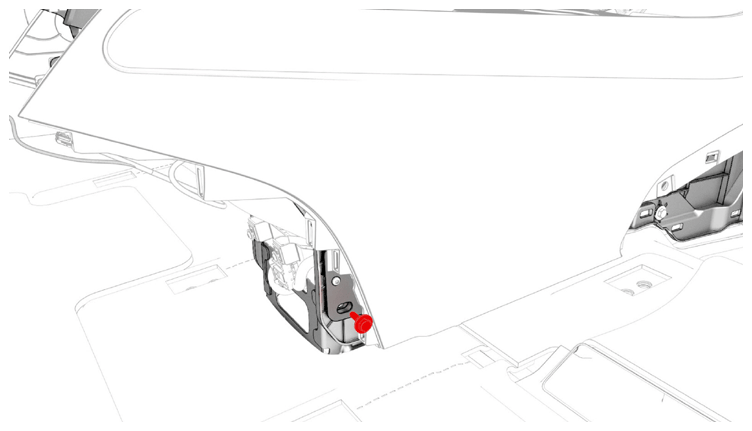

    G14824385Courtesy of TESLA, INC.
  5. Install the bolt that attaches the LH rear of the center console to the body.

    7 N.m (5.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)

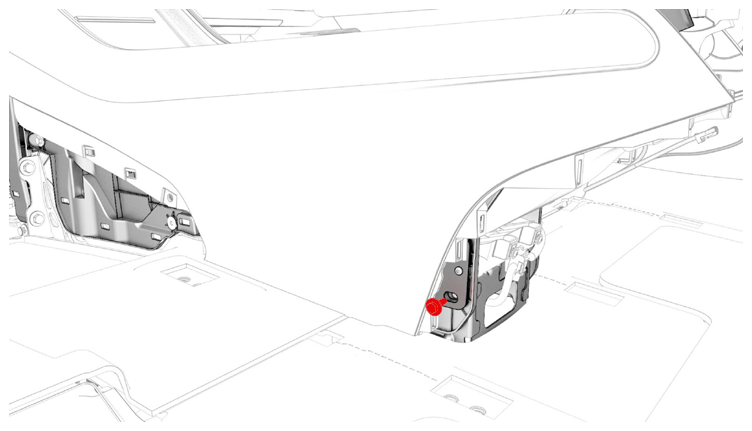

    G14824386Courtesy of TESLA, INC.
  6. Install the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
  7. Connect the electrical connector that is located at the RH front of the center console.
    CAUTION: Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.

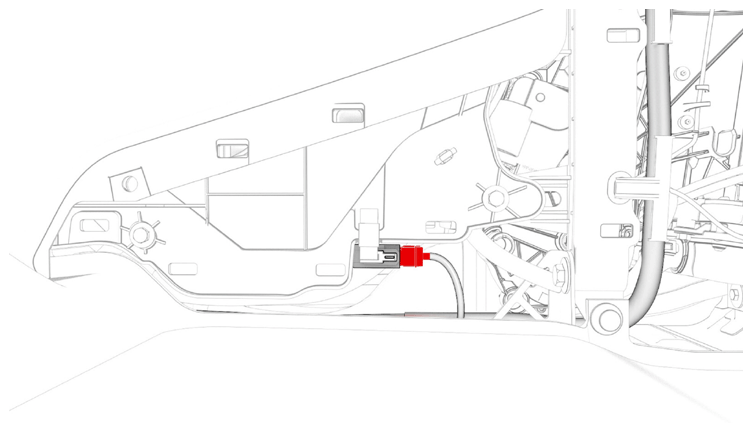

    G14824387Courtesy of TESLA, INC.
  8. Install the bolts that attach the RH front of the center console to the body.

    7 N.m (5.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)

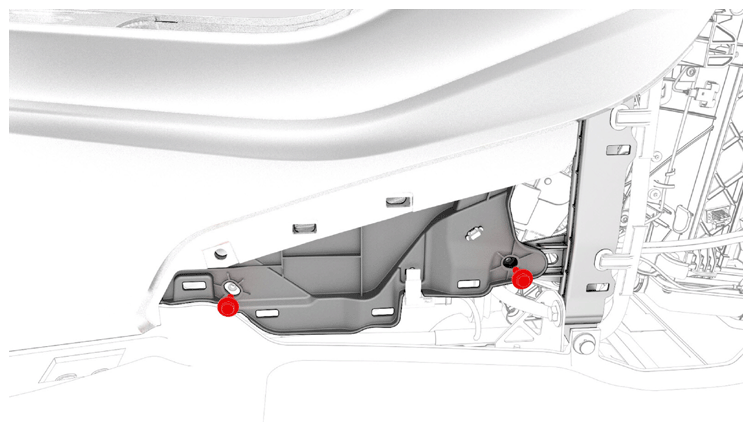

    G14824388Courtesy of TESLA, INC.
  9. Install the RH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  10. Install the front passenger floormat.
  11. Install the bolts that attach the LH front of the center console to the body.

    7 N.m (5.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)

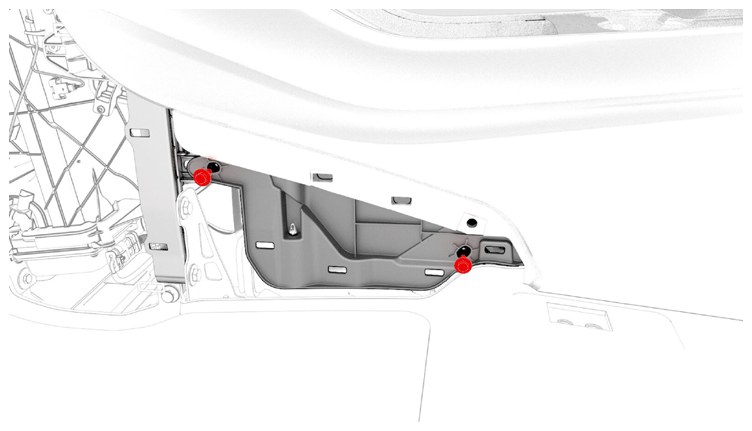

    G14824389Courtesy of TESLA, INC.
  12. Install the LH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  13. Install the driver floormat.
  14. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  15. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  16. Restore the customer's belongings into the center console, if needed.
